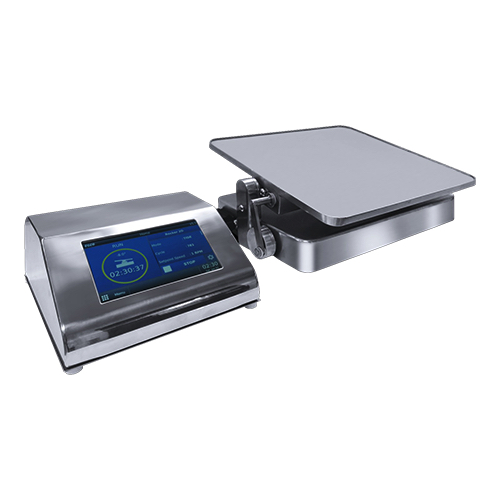

ESCO EQR/EL-DC MOTOR, 12VDC CelXrocker® Laboratory Rocker (Brushless DC planetary gear motor)

Description: 2D rocker

Overall dimension (WxDxH):

Platform at 0º: 300 mm x 280 mm x 116.6 mm

Platform at 20º: 300 mm x 280 mm x 163 mm

Motor type: DC motor

Shaking motion: Rocking

Speed range: 1-30 rpm

Tilt angle: ±20 degrees

Platform size (WxD): 300 mm x 280 mm

Platform mat: Non-slip silicone gasket

Max load capacity with platform: 13 kg

Electrical requirements: 100-240 V, AC, 1 Phase, 50/60Hz, 3 amperes

Operation type: Continuous or Tide

Experiment time: Infinite or timed

Body: Stainless steel (AISI304 grade)
