Analytical Methods: Dispersed X-ray fluorescence energy
PDA with touch screen
CPU: 2G, System Memory: 8G
Intelligent analytics
Automatic selection of test mode based on sample matrix
Source of stimulation: 50kV/200
Collimator & Filter: Multiple community sets and filters with automatic switching function
Detector: High Resolution Silicon Detector
Sample Status: Solids, liquids, powders
Detection limits: 5 500ppm, depending on element and sample matrix
Analysis Time: 3-60 seconds
Simultaneous analysis: Display up to 40 elements at once
Range Display: ppm - 99.99%
Safety: Automatic shutdown of the X-ray tube, PB lined instrument frame, radiation level in international safety standards
Power Supply: The rechargeable Li battery, standard 6800mAh, provides up to 12 hours of operation on a single charge; 110/220V Global Adapter for Charging
Temperature: -20 ºC to +50 ºC
Size: 235 mm x 82 mm x 260 mm
Weight: Devices without batteries: 1. 35 kg, tools with batteries: 1. 49 kg

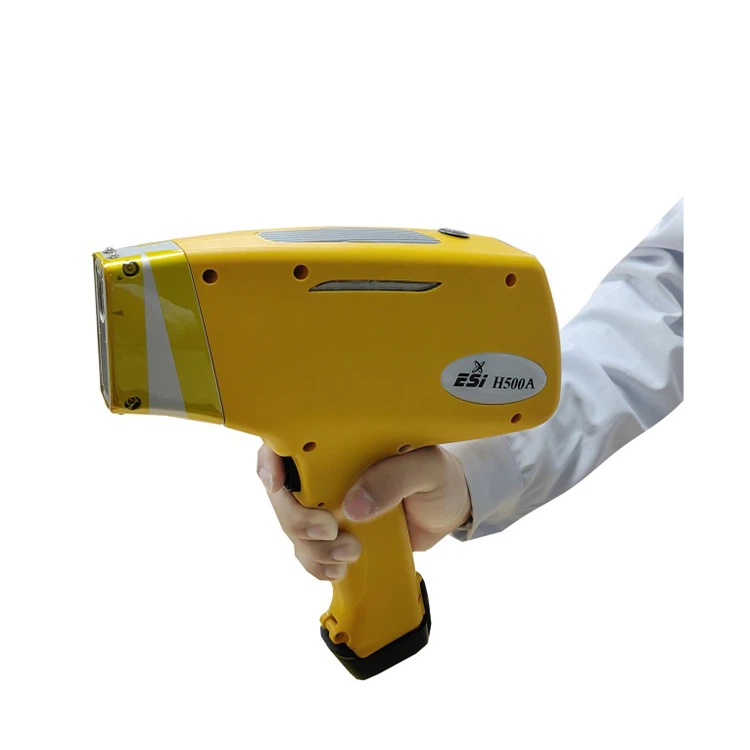

The handheld alloy metal analyzer you have, can be done anywhere:
Simultaneous analysis of sulfur and chlorine
Compact, portable XRF technology
Vacuum-based system for enhanced performance
