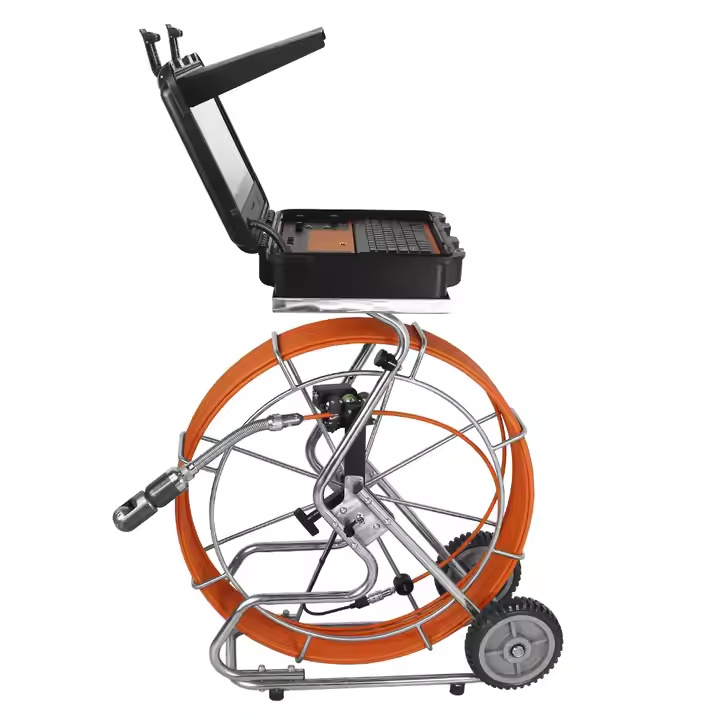

ETV Cameras 4688FHPT Pipe Inspection Camera (Φ50mm; cable 60m)

50mm Pan Tilt Rotation Camera Head

Camera Size: 50mm x 154mm

Camera Pixel: Sensor 1/3" CMOS, 1.3MP

Waterproof Level: IP68

Camera Range: View range 120°

Focusing: Manual focus

Rotation Range: Pan 360°, Tilt 180°

Light: 6 pcs high light LED, adjustable

Connector: Detachable with pins type connection to Cable Reel

Material: Lens window sapphire glass & stainless steel

DVR Control Unit

Screen Size: 13" HD IPS LCD, 1280 x 720 resolution

Waterproof Level: Waterproof keys & panel

Function: Video, audio, and photography DVR

Keyboard: USB wireless keyboard for real-time typewriting

Meter Counter: Digital meter counter, display on the screen

Battery: 8800mAh rechargeable Li-ion Battery Pack

Battery Level Indicator: Included

The box has 9 languages.(English,Chinese,French, Espanol

German,Polish,Korea,Russian and Italian.

Cable Reel

Meter Counter: Digital meter counter

Material: Fiberglass push rod cable

Cable Diameter: 9mm or 11mm

Cable Length: 60m

Reel Size: 70 x 28 x 84cm

What's Included:

Camera head

Cable reel 60m

DVR control unit

Video Link cable(6pin)

Meter counter link cable(8pin)

Camera skid

Working platform

32G USB disk

Charge adaptor

Waterproof ring

Microphone

Earphone

User manual

Tool bag

This professional 50mm Pan & Tilt camera system is equipped with state-of-the-art imaging technology to deliver crystal-clear visuals with remarkable detail. With full 360-degree rotation and 180-degree tilt, the camera head allows for comprehensive scanning inside pipes.

The one-touch manual focus ensures fast, precise adjustments for sharp images at various distances.This system is widely used in inspections of Sewer, central air conditioning, chimney, plumbing, building, cable pipe and pipes ventilation systems and other places.
