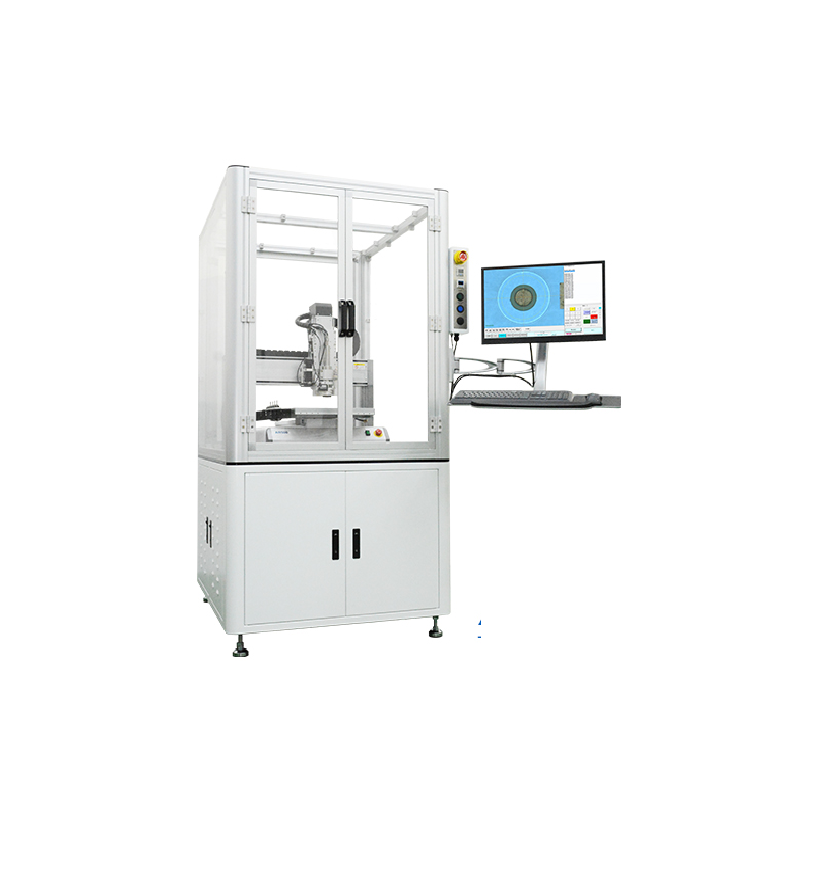

EVERPRECISION AR500 Utility Vision CNC Machine

Working Area: 300 × 450 x 100 mm

Structure: X.Y.Z

Max. Speed: 800 / 320 mm/sec

Display: LCD Screen

Teaching Mode: PC

Data Storage: PC

Spindle Speed: 40,000 rpm

Dimension: 1570 × 1570 × 2080 mm

Power: AC 110~230 V

Repeatability: +/- 0.01 mm/ Axis

Control Motor: X.Y / linear motor

X / Y Location Feedback: Optical Ruler

Moving Mode: PTP & CP

Support Format: DXF

Vision System: Support Auto Calibration and Self-Defined Graphics.

Working Temp.: 10 – 40 °C

Weight: 400 Kg
