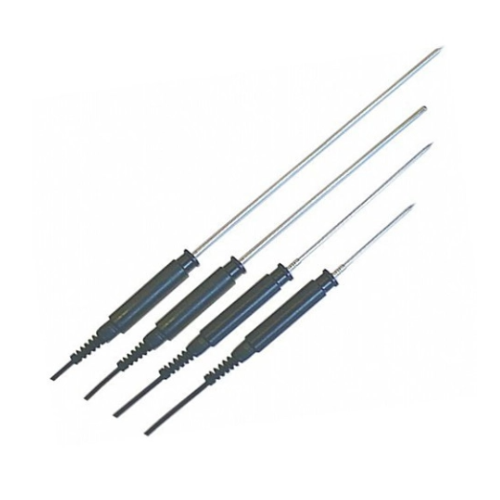

Evikon ET140 Insertion Sensors with Handle (-50~200°C)

Sensing element options: Pt100A (standard); Pt1000A, PTC1000 or NTC10k, etc

Measurement ranges: -50...+200 °C

Protection tube: A4 / AISI316L stainless steel

Stem dimensions: Ø4 mm, length 130 mm (standard)

                              Ø6 mm, length 230, 530 or 1000 mm

Protection class: IP55

Cable type: 3-wire silicone insulated, 3 m (standard)

Handle material: Polyoxymethylene (POM)

Handle dimensions: Ø20 mm, length 150 mm
