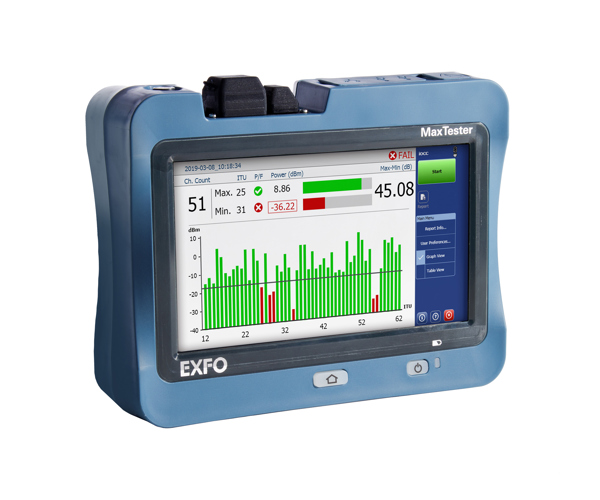

EXFO MAX-5205 간단한 DWDM 채널 검사기 (1527.99-1567.95 nm (191.2-196.2 THz))

SOFTWARE UTILITIES

Software update: Ensure that your MaxTester is up-to-date with the latest software.

VNC configuration: The Virtual Network Computing utility allows technicians to easily remote control the unit via a computer or laptop.

Microsoft Internet Explorer: Access the Web directly from your device interface.

Data mover: Transfer all your daily test results quickly and easily.

Centralized documentation: Instant access to user guides and other relevant documents.

Wallpapers: Enhance your work environment with colorful and scenic backgrounds.

PDF Reader: View your reports in PDF format.

Bluetooth file sharing: Share files between your MaxTester and any Bluetooth-enabled device.

WiFi connection: WiFi FIP inspection scope interface. Upload test results and browse the Internet.

Inspection scope:USB or WiFi scope to inspect and analyze connectors.

TECHNICAL SPECIFICATIONS

Wavelength range (C-band) :1527.99-1567.95 nm (191.2-196.2 THz)

ITU channels: ITU-T G694.1 channels 12-62

Channel spacing: DWDM 100 GHz

Dynamic range per channel (dBm): 10 to –40

Maximum total safe power (dBm): 20

Absolute power uncertainty (dB) (typical): 1

ORL (dB): > 35

Measurement time (s): < 3

TECHNICAL SPECIFICATIONS

Display: 7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT

Interfaces: Two USB 2.0 ports; RJ45 LAN 10/100 Mbit/s

Storage: 2 GB internal memory (20 000 OTDR traces, typical)

Batteries: Rechargeable lithium-polymer battery ; 8 hours of operation as per Telcordia (Bellcore) TR-NWT-001138

Power supply: Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz

Size (H x W x D): 166 mm x 200 mm x 68 mm (6 9/16 in x 7 7/8 in x 2 3/4 in)

Weight (with battery): 1.5 kg (3.3 lb)

Temperature:

Operating: 0 °C to 40 °C (32 °F to 104 °F)

Storage: –40 °C to 70 °C (–40 °F to 158 °F)

Relatine humidity: 0 % to 95 % noncondensing

BUILT-IN POWER METER SPECIFICATIONS (GeX) (OPTIONAL)

Calibrated wavelengths (nm): 850, 1300, 1310, 1490, 1550, 1625, 1650

Power range (dBm): 27 to —50

Uncertainty (%): ±5 % ± 10 nW

Display resolution (dB): 0.01 = max to —40 dBm; 0.1 = —40 dBm to —50 dBm

Automatic offset nulling range: Max power to —30 dBm

Tone detection (Hz): 270/330/1000/2000

VISUAL FAULT LOCATOR (VFL) (OPTIONAL)

Laser, 650 nm ± 10 nm

CW/Modulate 1 Hz

Typical Pout in 62.5/125 µm: > –1.5 dBm (0.7 mW)

Laser safety: Class 2

Datasheet
