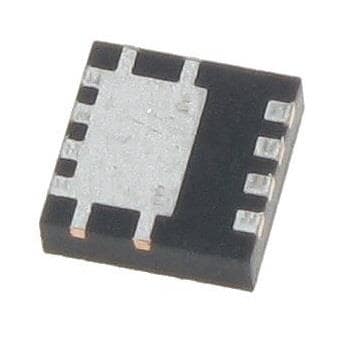

Fairchild FDMC8321LDC MOSFETs 40 V N-채널 파워 트렌치 MOSFET

Width: 3.3 mm

Height: 1 mm

Length: 3.3 mm

Technology: Si

Unit Weight: 32.130 mg

Channel Mode: Enhancement

REACH - SVHC: Details

Configuration: Single

Mounting Style: SMD/SMT

Qg - Gate Charge: 60 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 56 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Id - Continuous Drain Current: 108 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 2.5 mOhms

Vds - Drain-Source Breakdown Voltage: 40 V

Vgs th - Gate-Source Threshold Voltage: 1 V
