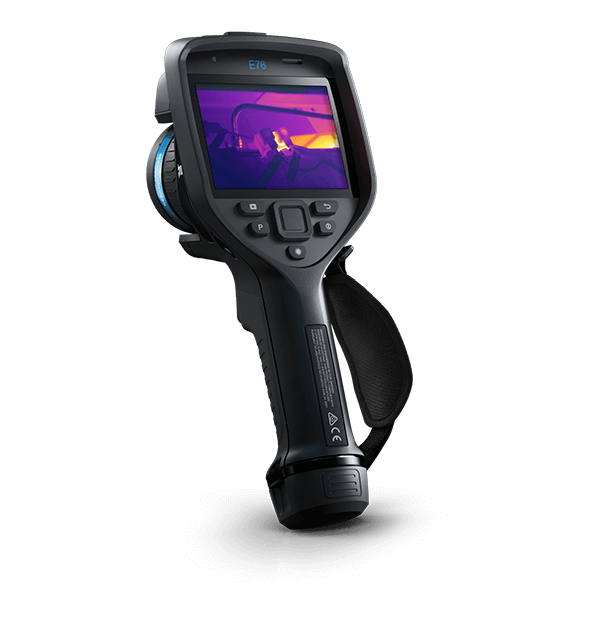

FLIR E76-14 Advanced Thermal Camera (320 x 240; -20~120°C/ 0~650°C; w/14° lens)

IR resolution : 320 × 240 pixels

Resolution with UltraMax® : 307,200 pixels

MSX® image enhancement : Yes: details from visual camera add depth and perspective

Built-in visual camera : 5 MP, fixed focus, with built in LED light

Thermal sensitivity : <40 mK @ 30°C (86°F), 24° lens

Temperature range: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F)

Optional temperature range : 300°C to 1000°C (572°F to 1832°F)

Accuracy: ±2°C (±3.6°F) or ±2% of the reading

Focus modes : Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast, manual

Digital zoom : 1–4x continuous

Measurement tools: 3 spotmeters in live mode, 3 area meters in live mode

Measurement presets: None, center spot, hot spot, cold spot; User Presets 1&2

Available lenses : 14°

1-Touch Level/Span : Yes: automatic contrast enhancement

Laser pointer : Yes

Area measurement information: —

On-camera routing software : FLIR Inspection Route™ with baseline image comparison and image overlay guidance

On-camera report building : Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen

FLIR software integration FLIR Thermal Studio Suite, FLIR Research Studio:

Radiometric JPEG : Yes

IR, radiometric, visual video recording : Yes

IR, radiometric, visual video streaming: Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual)

Communication modes : USB 2.0, Bluetooth®, Wi-Fi, DisplayPort

Cloud services : FLIR Ignite™ for automatic uploading of images directly from the camera to the cloud for easy, secure storage, editing, sharing, and reporting

METERLiNK® : Yes via Bluetooth

Display : 640 × 480 pixels (VGA) Dragontrail® touchscreen

Drop-testing : 2 m (6.6 ft)

Battery operation time : >2.5 hours, typical use
