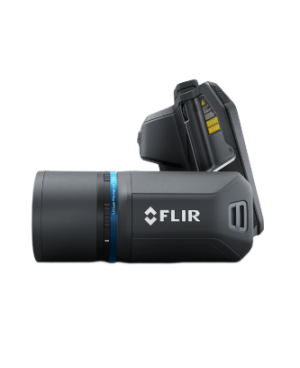

FLIR T865 80° High-Performance Handheld Infrared Camera (640 × 480 pixels; -40°C~2000°C)

IR Resolution: 640 × 480 pixels

Thermal Sensitivity/NETD: <50 mK at 30°C (14° lens)

Accuracy: ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F)

Field of View (FOV): 80° × 63°

Digital Camera: 5 MP, with built-in LED photo/video lamp, disabled when 80° lens in use

Display: 4", 640 ×480 pixel touchscreen LCD with auto-rotation

Storage Media: Removable SD card

IMAGING & OPTICAL

Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava

Detector Type and Pitch: Uncooled microbolometer, 12 µm

Digital Camera: 5 MP, with built-in LED photo/video lamp, disabled when 80° lens in use

Digital Zoom: 1-8x continuous

f-number: 1.3, 80°

Focal length: 5 mm (0.19 in)

Focus: Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual

Image Frequency: 30 Hz

IR Resolution: 640 × 480 pixels

Lens Identification: Automatic

Minimum Focus Distance: 0.1 m (3.9 in)

Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi

Picture-in-Picture: Resizable and movable

Radiometric IR video recording: Real-time radiometric recording (.csq)

Radiometric IR video streaming: Yes, over UVC

Spatial resolution (IFOV): Dependent on the IR resolution of the camera: 320 × 240 pixels: 5.2mrad/pixel 464 × 348 pixels: 3.6 mrad/pixel 640 × 480 pixels: 2.6 mrad/pixel

Spectral Range: 7.5 - 14.0 µm

Thermal Sensitivity/NETD: <50 mK at 30°C (14° lens)

UltraMax: Quadruples pixel count; activated in menu and processed in FLIR reporting software.

Viewfinder: Yes

MEASUREMENT & ANALYSIS

Accuracy: ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F)

Measurement Presets: No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2

Object Temperature Range: -40°C to 120°C (-40°F to 248°F); 0°C to 650°C (32°F to 1202°F) 300°C to 2000°C (572°F to 3632°F)

Spot Meter: 10 ea. in live mode

USER INTERFACE

Display: 4", 640 ×480 pixel touchscreen LCD with auto-rotation

Text: Predefined list or touchscreen keyboard

Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth

POWER

Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use

Battery Type: Li-ion battery, charged in camera or on separate charger

ENVIRONMENTAL & CERTIFICATIONS

Operating Temperature Range: -15°C to 50°C (5°F to 122°F)

Safety: EN/UL/CSA/PSE 60950-1

Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
