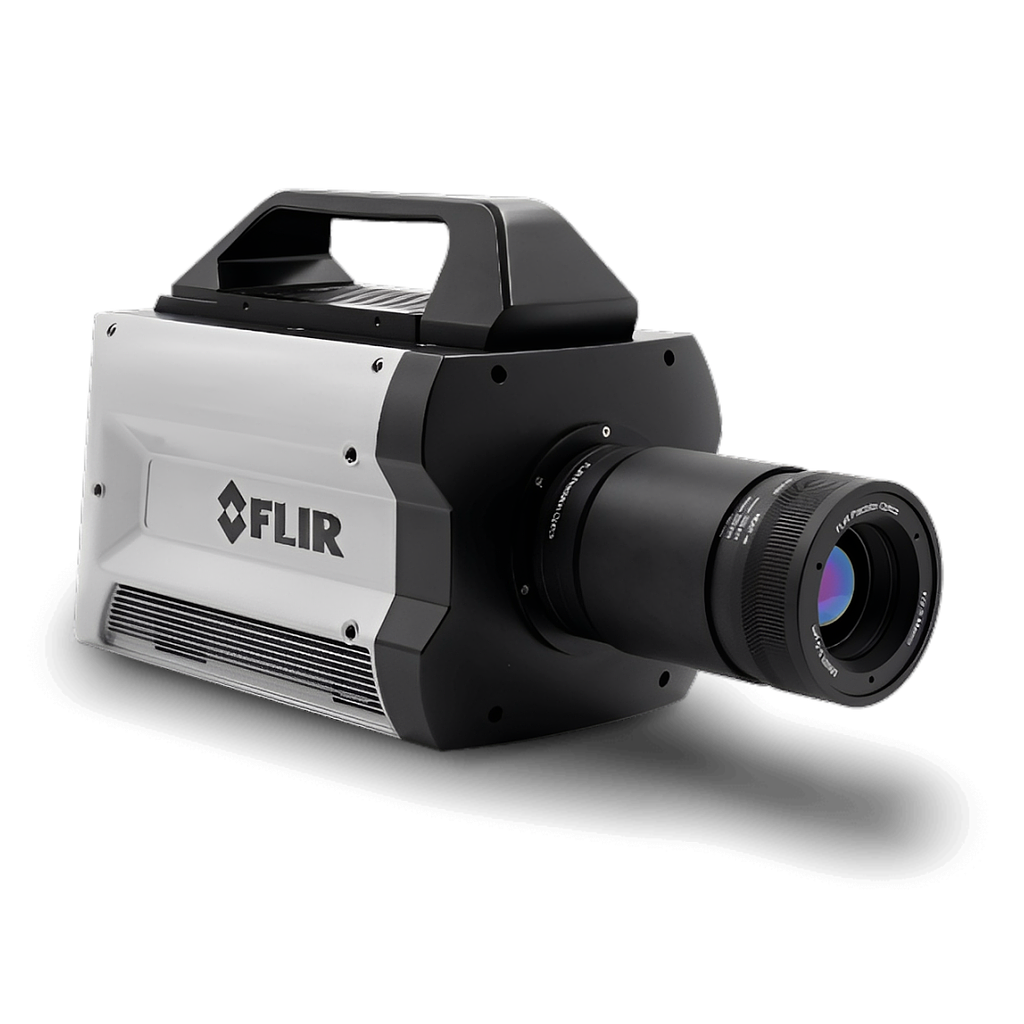

FLIR X8580HS High Definition MWIR Science-Grade Camera (1.5 – 5.0 µm; f/2.5; -20°C ~ 300°C)

Resolution: 1280 × 1024

Detector Pitch: 12 µm

Spectral Range: 1.5 – 5.0 µm

Detector Type: FLIR Indium Antimonide (InSb)

Camera f-number: f/2.5

Dynamic Range: 14-bit

Frame Rate [Full Window]: Programmable: approx. 0.5 Hz to 181 Hz

Integration Time: 270 ns to approx. full frame

Standard Temperature Range [with band matched optics]: -20°C to 300°C (-4°F to 572°F)

Optional Temperature Range [with band matched optics]: 45°C to 600°C (ND1); 250°C to 2000°C (ND2); 500°C to 3000°C (ND3)

Filtering: 4-position motorized filter wheel, standard 1-inch filters, user swappable

Focus: Motorized (compatible with manual)
