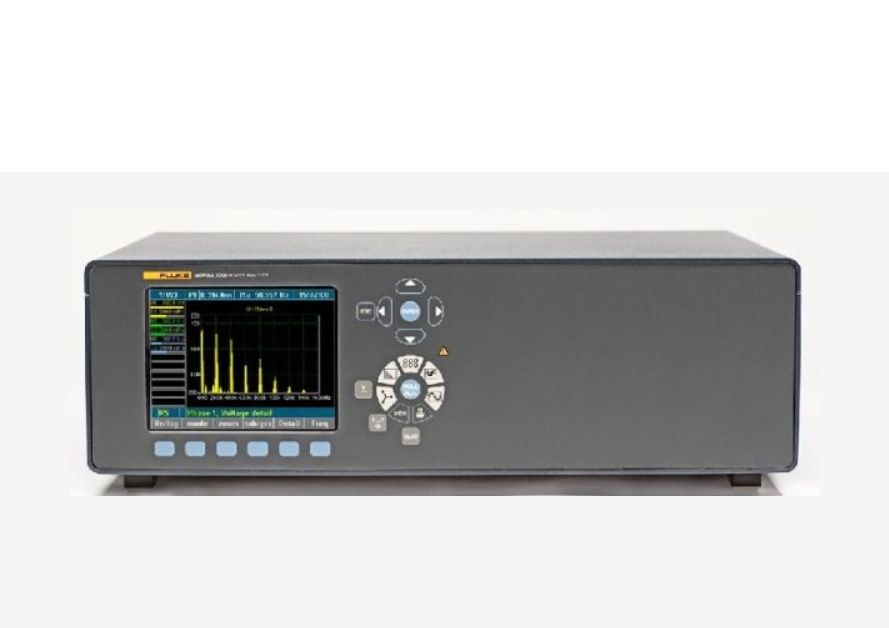

FLUKE FLUKE-N5K 6PP50I 3상 전력 분석기 (3 phases, 6 x PP50 modules, 10 MHz, IEEE488/LAN Interface)

Applications

Motors

Inverters

Lighting

Power supplies

Transformers

Making Automotive components more efficient

Power Phase:

Channel: PP50

Accuracy: 0.1% (0.05% rg + 0.05% rg)

Current Range: 10A

Sampling Rate: 1 MHz

Bandwidth: 10 MHz

General Specifications:

Housing: Equipped with a solid metal case to meet stringent EMC requirements

Weight: Base unit approximately 5 kg (11 lbs)

Dimensions: 15 x 23.7 x 31.5 cm (5.9 x 9.3 x 12.4")

Display: 5.7" / 144mm - 320 x 240 pixel

User-selectable: background lighting and contrast

Included:

Norma 5000 Three phase Power Analyzer

6 x PP50 power phase input modules

Printer

Power supply cable

Fluke NormaView PC software

Colour user's manual

Test certificate

Calibration values

Datasheet

Manual
