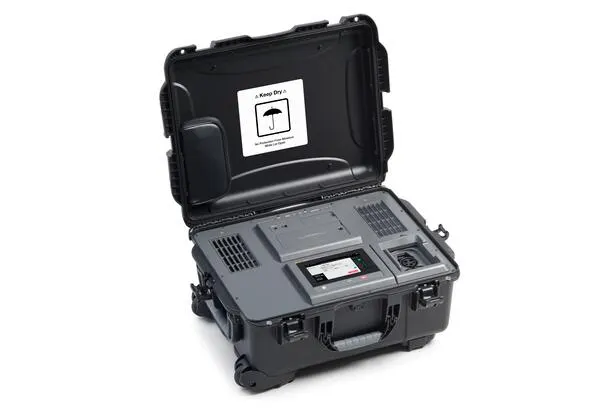

FLUKE FLK- FEV500/CCS2PRO Fast DC EV Charging Station Analyzer (CCS2 with software, 1000V, 10A, 3.75kW)

Electrical Specifications

Voltage

Range : 1,000 V

Resolution : 0.1 V

Accuracy : ± (0.2% + 4 digits)

Current

Range : 10 A

Resolution : 0.01 A

Accuracy : ± (0.5% + 5 digits)

Power

Range : 0 to 3.75 kW

Resolution : 1 W

Accuracy : ± (0.7% rdg + 2 digit)

IMD Test

No Trip Test : 250 kΩ, asymmetric insulation resistance DC+ to PE

Trip Test :

95 kΩ (max. EVSE Voltage >500 V dc)

45 kΩ (max. EVSE Voltage ≤500 V dc), asymmetric insulation resistance DC- to PE

Time per test : <15 s

Standard : IEC 61557-8 / IEC 61557-18

Continuity (RLO) Test Lead to PE (CCS)

Test current : max. 10 A

Range : 2 Ω

Resolution :

<1 Ω : 0.1 mΩ

≥1 Ω : 0.0001 MΩ

Accuracy :

≤20 mΩ : ±(8% + 0.8 mΩ)

≤200 mΩ : ±(4% + 4 mΩ)

200 mΩ : ±(4% + 40 mΩ)

Standard : IEC 61557-4

Insulation Resistance DC+ to PE and DC- to PE

Test voltage : ±

500 V

Range : 10 kΩ to 20 MΩ

Resolution : 0.01 MΩ

Accuracy : ± (5% rdg + 2 digit)

1000 V

Range : 10 kΩ to 20 MΩ

Resolution : 0.01 MΩ

Accuracy : ± (5% rdg + 2 digit)

Max short circuit current : 2 mA

Standard : IEC 61557-2

CP Test (CCS 1, CCS2)

Simulation of states : A, B, C, D, E

CP High, CP Low :

Range : 15 V .. +15 V

Resolution : 0.01 V

Accuracy : ± (0.4% rdg + 2 digit)

Frequency measurement :

Range : DC, 900 Hz to 1100 Hz

Resolution : 1 Hz

Accuracy : 0.1% or 1 digit

Duty cycle :

Range : 2 ... 98 %

Resolution : 0.10%

Accuracy : ±5 digit

PP Resistor :

50.0 ... 499.9 Ω : Resolution 0.1 Ω

500 to 5000 Ω : Resolution 1 Ω

Accuracy : ±0.5%

Digital protocol : DIN 70121, ISO 15118

SLAC : 0 dB to 20 dB, Resolution : 1 dB

General Specifications

Display : 7-inch capacitive touchscreen (1024 × 600), brightness up to 1,700 cd/m² (auto-adjusted)

Keys : Power on/off, Backlight, Stop Test

LED Indicators :

Green : Power on

Red : Low battery

Blue : Charging

Amber : Fan active when device is off

USB-C Ports : USB-C power delivery charging, flash drive TruTest™ connection, calibration

GNSS : Global navigation satellite receiver with internal antenna for time synchronization

Dimensions : 650 × 508 × 300 mm (25.6 × 20 × 11.8 in)

Weight : 26 kg (57.3 lb)

Battery Type : Li-ion RRC2040-2 (customer replaceable)

Battery Capacity : 10.8 V, 6.8 Ah, 73.44 Wh

Battery Runtime : 10 hours (recharges during test)

Charging Time : 3 hours (with 65 W USB-C PD)

Battery Backup Time Before Recharging Required : 6 months

Fuse : 11 A (not customer replaceable)
