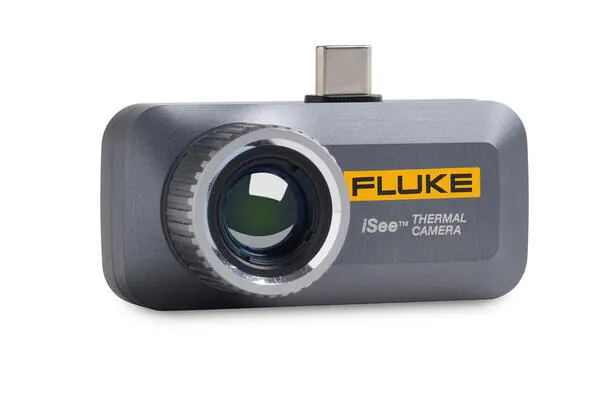

FLUKE FLK-TC03A 25HZ Mobile Thermal Camera (384 x 288; -20~150℃/100~500℃; Android; 25Hz)

IR Resolution: 384 x 288

SuperResolution: Yes, up to 768 x 576

Pixel size: 12 μm

Temperature range: -20 ℃ to 150 ℃, 100 ℃ to 550 ℃

Temperature accuracy (@ 23 °C ± 5 °C ambient temperature): ± 2% of rdg. or ± 2 °C, whichever is greater

Frame rate: 25 Hz

Focal length: 10.5 mm

Focusing mode: Manual

Nonuniformity Correction (NUC): Manual / Auto

Thermal sensitivity (NETD): 50 mK

Spectral range: 8 to 14 μm

Field of View (FOV): 25° x 19°

Spatial Resolution (IFOV): 1.14 mrad

USB Interface: Type C

Operating system supported: Android and HarmonyOS

Operating temperature: 0℃ to 40 ℃

Storage temperature: -30 ℃ to 60 ℃

Operating humidity: 10% to 90% RH (non-condensing）

Power consumption: 700 mW (Typical)

Ingress protection: IEC 60529: IP54 (with the protective cover for Type-C)

Operating altitude: 2000 m

Storage altitude: 12000 m

Dimensions (L x W x H): 60 mm x 36 mm x 28 mm

Weight: 55 g

EMC Environment:

International IEC 61326-1: Electromagnetic environment for portable equipments CISPR 11: Group 1, Class A

Group 1: Equipment intentionally generates and/or uses conductive-coupled RF energy, which is necessary for its internal operation.

Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.

Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.

Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment)

Class A: Device meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.

United States (FCC) 47 CFR Part 15 Subpart B. This product is considered an exempt device per clause 15.103.
