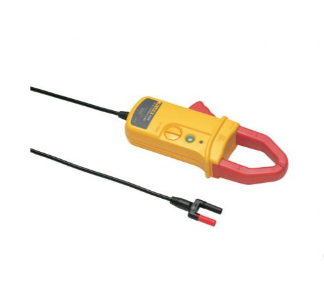

FLUKE I1010 AC/DC 전류 클램프 (600A/AC, 1000A/DC)

Measurement type Hall sensor

Nominal current range: 600 A, AC

1000 A, DC

Continuous current range: 1 A - 600 A, AC

1 A - 1000 A, DC

Maximum non-desctructive current: 1000 A

Lowest measureable current: 0.5 A

Basic accuracy: 2% + 0.5 A

(% reading + floorspec)

Useable frequency: DC - 10 kHz

Output level(s): 1 mV/A

Zero error adjustment: Yes

Safety Specifications

Safety: CAT III, 600 V

Maximum voltage: 600 V

Mechanical and General Specifications

Warranty: 1 year

Battery life: 9 V, 60 h

Maximum conductor diameter 30 mm

2 x 25 mm

Output cable length 1.6 m

Shrouded banana plugs: Yes
