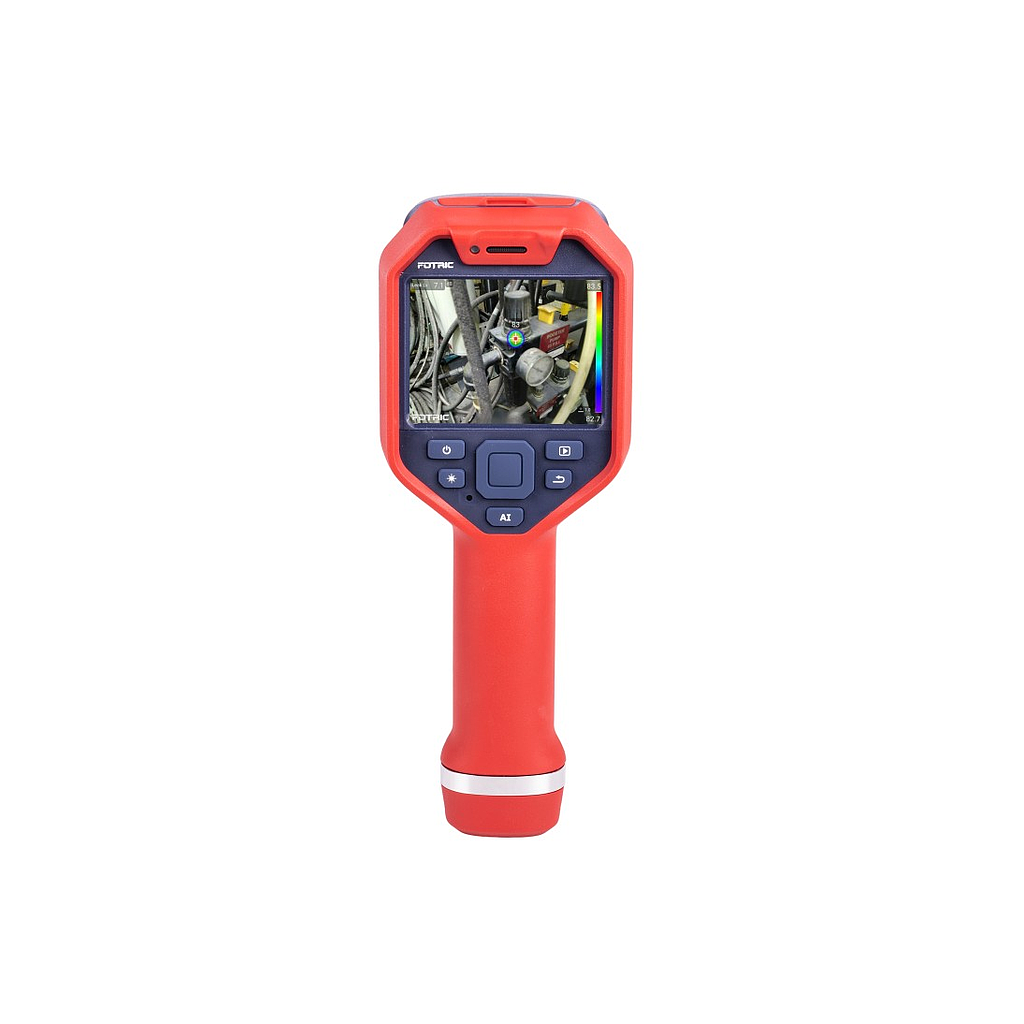

FOTRIC H4Mini Acoustic Imaging Camera (2~100kHz, 0.3~100m, 66° *52°)

Size: 243mm*95mm*150mm

Weight: 770g

Acoustic Image Delay (T-FFTD®): Captures instantaneous sound signals, can stay longer in real-time acoustic image

Acoustic Image Focus: Masks surrounding areas, focuses only on the acoustic image of the focused area

On-device Report Generation: The device is capable of directly generating acoustic image reports.

Gray Scale Background: Display digital camera images in grayscale.

Favorites: Click the favorite button to save the favorite status to acoustic images and holographic acoustic videos, highlighted in the gallery preview screen, and later filter by favorite status in the gallery.

QR Code Scanning: Scan QR code or Bar code for text annotation and tag table.

Battery Type: 3.6V, 5000mAh Rechargeable Lithium Battery, Field-Replaceable

Microphone Channel: 112 MEMS Digital Microphones

Acoustic Image Field of View (FOV): 66° *52°

Sound Sampling Rate: 200kHz

Acoustic Refresh Rate: 25Hz

Operating Distance: 0.3~100m

Frequency Range: 2~100kHz

Detection Mode: Leakage mode: display leakage level on device

Display Screen: 3.5-inch, 640 x 480 pixels, IPS LCD touch display

Image Modes: Single-source mode, multi-source mode, hologram mode

Digital Camera: 13 Megapixels, Industrial-Grade Digital Camera

Battery Operating Time: (Actual usage time depends on environmental and usage conditions)

Supported Languages: English, French, German, Italian, Japanese, Korean, Portuguese, Spanish, Thai, Traditional Chinese
