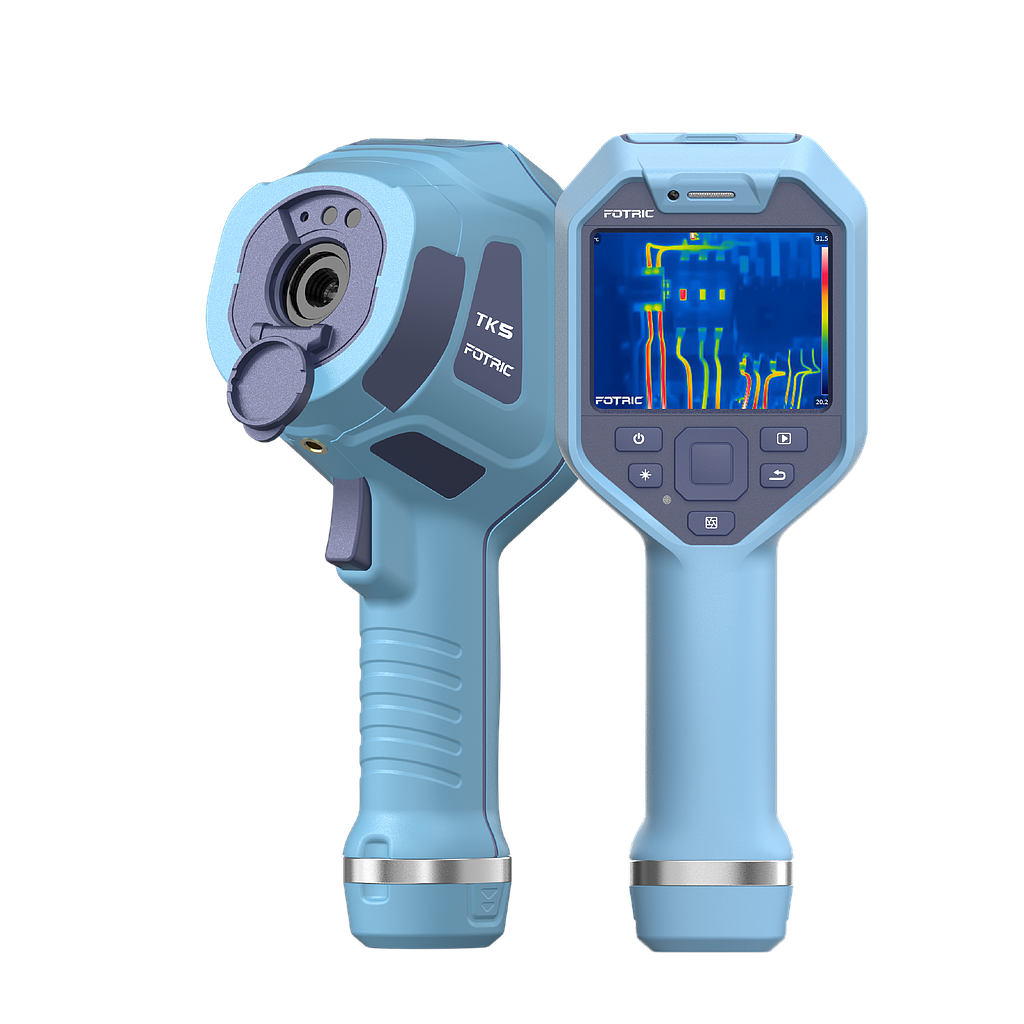

FOTRIC TK5 Kit Thermal lmaging Camera (TK5 Kit-L49. -20℃ ~ 450℃; 320 × 240; 49°×37°)

Field of View (FOV): 49° × 37°

Spatial Resolution (IFOV): 2.67 mrad

Minimum Imaging Distance: 0.4 m

Focus Mode: Focus free

Complete Temperature Range: -20℃ ~ 450℃ (-4 ~ 842 ℉)

Accuracy: ±2℃ (3.6 ℉) or ±2%, whichever is greater (Ambient temperature 15~35℃ (59~95 ℉), target object temperature >0℃, calibration at 1 meter)

Image Frame Rate: 30 Hz

Measurement Spot: 20

Measurement Line: 10

Measurement Area: 10

Image Mode: Thermal image, Digital camera, Picture in Picture & T-DEF® blend

T-DEF®: Support, thermal and visible light image blend, transparency 0% ~ 100%

T-TWB®: Support histogram thermal color display

Infrared Resolution: 320 × 240

IR Detector Type: Ceramic-packaged detector, uncooled FPA infrared detector

Thermal Sensitivity (NETD): 40 mK (0.04℃) @30℃ (86 ℉)

Detector Pitch: 12 μm

Spectral Range: 8 – 14 μm

PC Software: AnalyzIR®

Display Screen: 3.5 inch Touch Screen

Palettes: 6 Palettes

Digital Camera: 5 MP industrial camera

Storage Card: TF card, max 32GB

File Format: Radiometric thermal photo (JPEG), digital camera photo

Battery Type: Rechargeable Li-ion, 3.6V, 5000mAh

Battery Operating Time: ≥ 5 hours

Language: English
