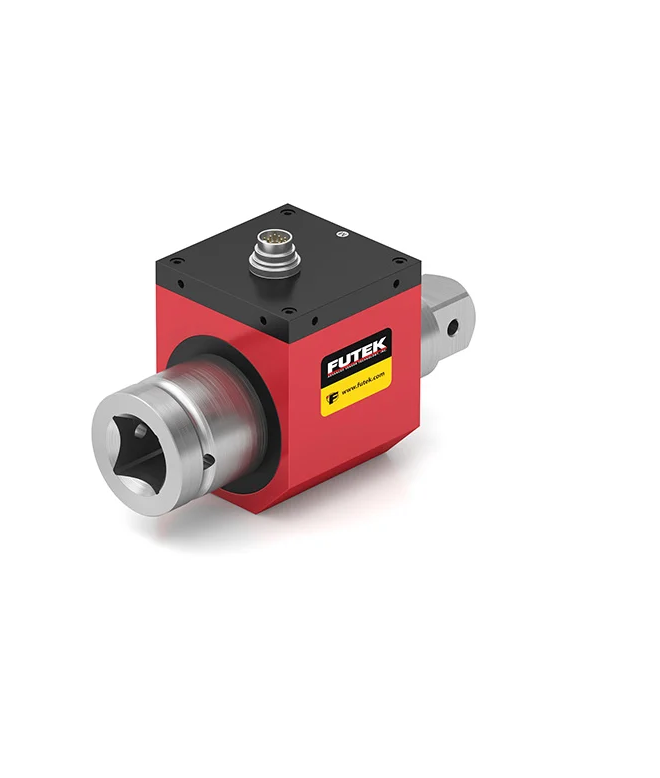

FUTEK TRD605 Non-Contact Square-Drive Rotary Torque Sensor (160 N-m, 1/2-Sq. Drive)

PERFORMANCE

Nonlinearity: ±0.2% of RO

Hysteresis: ±0.1% of RO

Nonrepeatability: ±0.2% of RO

Rotational Speed: 7000 RPM Max

ELECTRICAL

Bandwidth: 3 kHz

Typical Noise: <50 mV p-p

Rated Output (RO): ±5 VDC

Excitation (VDC or VAC): 11 to 26 VDC, 1 Watt

Connection: 12 pin Binder Series #581 (09-0331-90-12)

MECHANICAL

Safe Overload: 150% of RO

Material: Aluminum (Housing) Steel Alloy (Shaft)

IP Rating: IP40

TEMPERATURE

Operating Temperature: –13 to 176°F (–25 to 80°C)

Compensated Temperature: 41 to 122°F (5 to 50°C)

Temperature Shift Zero: ±0.01% of RO/°F (±0.02% of RO/°C)

Temperature Shift Span: ±0.01% of Load/°F (±0.02% of Load/°C)

CALIBRATION

Calibration Test Excitation: 12 VDC

Calibration (standard): Certificate of Conformance

Calibration (available): 5-pt CW & CCW

Shunt Calibration: With sensor fully connected apply 11–26 VDC to Pins A & K to generate 5 VDC nom output

ENCODER

Output: Impulse (TTL)

Pulses per Revolution: 2 × 360

Excitation: 5 VDC, 40 mA max

Angle 1: Leading Pulse

Angle 2: Trailing Pulse (90°)
