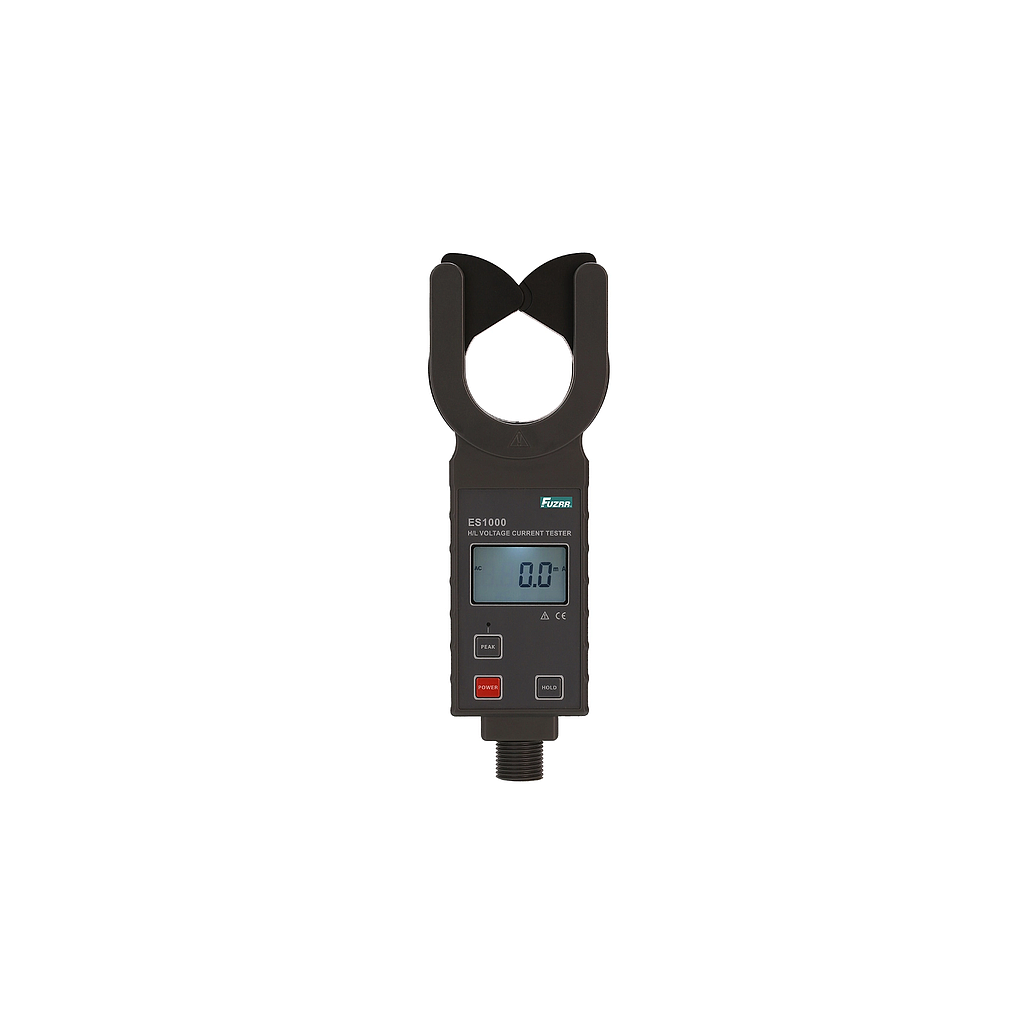

FUZRR ES1000 H/L Vlotage Clamp Current Meter (0.0mA-1,200 A, φ50mm)

Range: 0.0mA-1,200A ( 50/60Hz Auto )

Resolution: 0.1mA

Clamp Diameter: φ50mm

Accuracy: ±2%rdg±5dgt

Sampling Speed: 2 times/second

Function: High-low voltage current measurement

Power Supply: DC6V Alkaline Dry Battery (1.5V AAA × 4)

Test Method: Clamp CT

Meter Dimension: Host Dimension : W/T/H 87*37*262mm

LCD Dimension: 48mm×31mm

Total Weight: 2.5Kg (including insulation rod and battery)

Overflow Display: Exceed measurement range overflow function : “OL” symbol display

Data Storage: 99 groups

Data Storage Full: Data full function : “FULL” symbol display

Battery Voltage: When the battery voltage is below 5.2V, the symbol of battery voltage is low will show

Insulated Rod: 5 sections insulation rods ( total 5 meters )

Insulation strength: AC 60kV/rms

Circuit Test: Insulation sheath wire test below 60kV line voltage, bare wire test under 35kV (with insulation rod operation)

Work Temperature: -10°C ~ 40°C

Storage Temperature: -10°C ~ 60°C

Humidity: 0°C ~ 31°C ≤ 75% , 31°C ~ 40°C ≤ 50%

Suitable for safety regulations: IEC1010-1, IEC1010-2-032, Pollution Level 2, CAT III (600V) IEC61326 (EMC Standard)

IP: IP45
