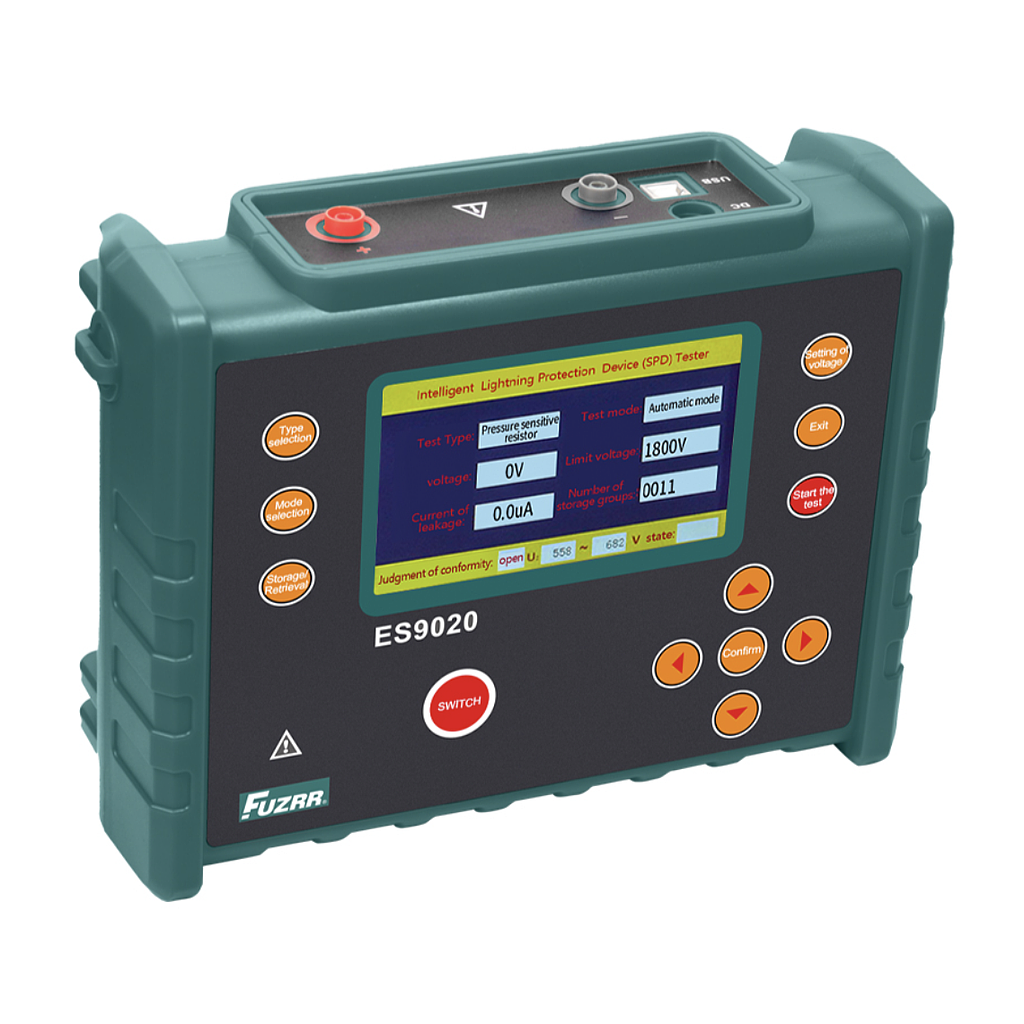

FUZRR ES9020 Intelligent Surge Protection Device Tester (0 ~ 2000V, 0.1uA ~ 199.9uA)

Baseline Conditions: 23 °C ± 5 °C, below 75% RH

Measuring Voltage Range: 0 ~ 2000 V | Accuracy: ±2% rdg ± 3 dgt

Measuring Leakage Current: 0.1 µA ~ 199.9 µA | Accuracy: ±3% rdg ± 5 dgt

DC Voltage Resolution: 1 V

Leakage Current Resolution: 0.1 µA

Insulation Resistance: 0 ~ 1000 MΩ

Test Settling Time: ≤3 s

Discharge Tube Voltage Rise Rate: (100 ± 8) V/s

Power Supply: 7.2 V high-capacity rechargeable battery

Backlight: Yes, suitable for dark places

USB Data Transfer: Available

Display Mode: 5-inch color TFT LCD

LCD Display Size: 108 mm × 65 mm

Meter Size: 240 mm (L) × 188 mm (W) × 85 mm (H)

Test Leads: Red test lead, 1 meter; black test lead, 1 meter

Data Storage: 500 groups

Data Access: Data access function; “MR” symbol display

Overflow Display: Overrange overflow function; “OL” symbol display

Judgment Function: The measured value exceeds the set range

Power Consumption:

Standby: 150 mA Max

Measurement: 880 mA Max

Weight: 1230 g (including battery)

Battery Voltage: Low battery voltage, showing the low-battery symbol

Automatic Shut-down: The meter shuts down after about 15 minutes of inactivity

Insulation Resistance: ≥50 MΩ (1000 V)

Withstand Voltage: AC 3 kV/50 Hz for 1 min

Operating Temperature and Humidity: -10 °C ~ +50 °C, <85% RH

Storage Temperature and Humidity: -15 °C ~ +55 °C, <90% RH
