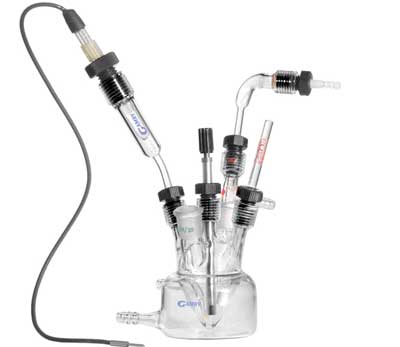

GAMRY Dr. Bob's Cell Electrochemical Cells (Working Volume: Between 1 mL and 30 mL)

DIMENSIONS

Working Volume: Between 1 mL and 30 mL

Size: Approximately 10 cm diameter by 30 cm high (including electrodes)

WORKING ELECTRODE PORT

Type: #7 Ace-Thred

Electrode Diameter: Supports 6.5 mm to 7.5 mm diameter electrode bodies

Electrode Length: For work with small volumes, length must be at least 11 cm

Macro Electrodes: Glassy carbon, gold, and platinum (3 mm diameter)

Micro Electrodes: 10 μm gold and platinum electrodes and 11 μm carbon fiber

Datasheet
