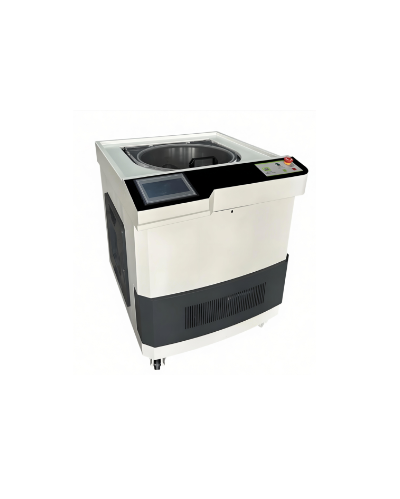

Gelon GN-300SS Vacuum Degassing Mixer (200-2800rpm)

Method: Rotation / Revolution / Vacuum – non-contact mixing method + vacuum negative pressure suction method

PLC control: Equipped with a 7-inch touchscreen interface; can edit and store 26 programs by default. (Additional programs can be customized upon request.)

Operation program: Each program can be controlled in 5 stages, including running time, running speed, vacuum time, etc.

Revolution speed: 200–2800 rpm, accuracy 1 rpm

Rotation speed: 200–2800 rpm; the rotation-to-revolution speed ratio is fixed at 1:1 and is not adjustable. (Other speed ratios or individually adjustable rotation speed can be customized.)

Forward/reverse adjustment: Yes

Vacuum negative pressure: −100 kPa = −0.1 MPa (customizable)

Vacuum pumping capacity: 21 m³/h

Continuous rotation time: 30 min; timer adjustable from 0–9999 h, with 1 s accuracy

Mixing tank: 300 ml × 2; left-right weight balance, two workstations, 45° angle

Heating/Cooling: Customizable

Safety protection: Automatic shutdown in case of malfunction; operation stops when the top cover is opened. Also equipped with overload, leakage, and emergency-stop protection functions.

Delay: The vacuum can be evacuated first and then the motor started, or the motor can be started first and then the vacuum applied.

Power supply: AC 220 V, 50 Hz

Power: 2.6 kW

Dimensions: 500 × 530 × 630 mm

Weight: Approximately 90 kg
