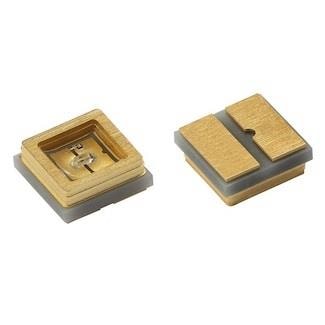

Vishay General Semiconductor VLMU35CL20-275-120 고출력 세라믹 UVC LED 3.5mW 30mA

Width: 3.45 mm

Height: 1.38 mm

Length: 3.45 mm

Lens Color: Colorless

Lens Shape: Square

Orientation: Top View

Power Rating: 210 mW

Viewing Angle: 60 deg

Mounting Style: SMD/SMT

Lens Transparency: Non-Diffused

Illumination Color: Ultraviolet (UVC)

Moisture Sensitive: Yes

If - Forward Current: 20 mA

Vf - Forward Voltage: 6 V

Wavelength/Color Temperature: 277 nm

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
