Workstations: 4groups
Testing heads: 50 x 50mm Bottom is rubber material
Speed: 90+/-1 rpm
Abrasion stage: Radian R80mm Length 300mm
Abrasion stroke:76+/- 2mm Camber length
Sample tension: 4 lbf 17.8N Can be adjusted

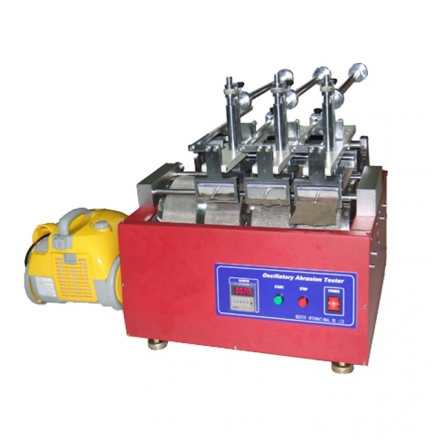

Designed for abrasion resistance of textile, leather and imitation leather, and can be reference as improving products quality.
Tension adjusting weights: 340g
Sample load: 3 lbf (13.4N) Can be adjusted
Load adjusting weights: 150g
Sample size: 73 x 245mm
Power supply: 1∮ AC220V 50/60Hz
Dimensions (L x W x H): 520 x 700 x 550mm
Weight: 80kg
