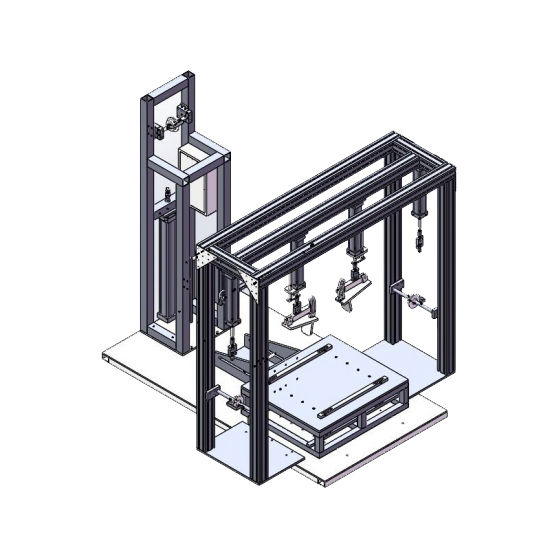

The tester tests the strength and durability of the arm, seats, back or other parts by simulating the loading of the seats during routine use.
Load capacity: 2000N
Force device stroke: 0-80cm
Stroke range: 60-160cm
Load Angle: 0~10° (The angle to the vertical is adjustable)
Test speed: 5~40 times/min
Testing time: 0-99999 (can be adjustment)
Control method: PLC control D1-1
Dimension (WxDxH): 150x150x190cm
Weight: 600kg
Power: 1 φ, AC 220V 50HZ
Standard Accessories:
2 pcs: GT-LBO1-3 Smaller seat loading pad;
2 pcs GT-LBO1-5 Local loading pad;
2 pcs: GT-LBO1-8 203mm loading pad;
2 pcs: Arm rest loading pad;
1 pc: GT-LBO1-10B BIFMA Cumulative Weight;
1pc: Seat back fixture;
1pc: Bifma Arm rest pull-down loading pad;
1pc: Stationary fixture;
2pcs: Stops
