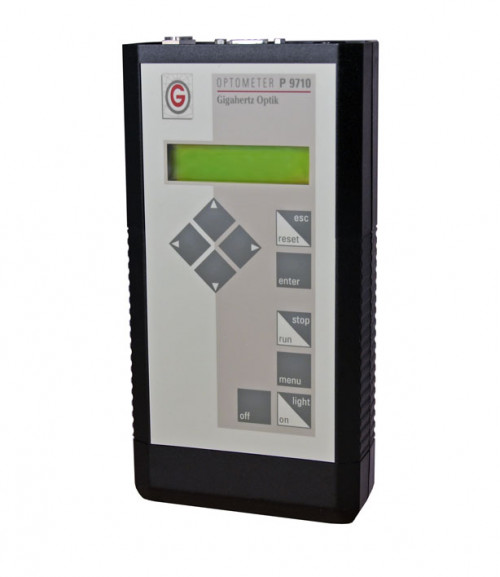

Gigahertz-Optik P-9710-4 High-End Optometer (100 μs – 5.9999 s)

 Equivalent to the optometer P-9710-2, with an additional trigger input for a synchronized triggering of the pulse energy measurement.

-Display: Alpha-numerical LCD display, 2 rows each with 16 characters, height of the characters 5 mm, LED backlight can be switched on and off.

-Detector interface: 9pin DSUB

-Analog output: Output voltage corresponding to the input current of the signal amplifier. Connection plug: TRIAD01 5pin (Tyco)

-Signal amplifier: Trans-impedance amplifier with voltage amplifier connected in series. A total of eight gain levels with both manual and automatic selection of the measurement range.

-CW integration time: 100 μs – 5.9999 s

-Pulse integration time: 10 ms – 199.99 s

-Offset correction: Exceeding correction range

-Parameter adjustment: Via RS232 or using control panel on the front side. Settings are permanently saved (EEPROM). Ten different settings can be saved

-Calibration: Saved in the detector terminal (EEPROM). Tables for calibration values of the spectral responsivity with up to 250 values are supported. Interpolation between two wavelength points are also possible. Manual input of a calibration value via the key pad is also possible.

-Data logger: Max. 12288 entries, permanently saved in flash memory

-Key pad: 10 buttons, menu-guided

-Power Supply:

Rechargeable battery, battery capacity: 3,7 V, 1400 mAh

Rechargeable battery, battery capacity: 6 V, 500 Ah (Version before 2017)

Operation time: 5 hours with display backlight switched on, 12 hours with display backlight switched off

5.5 mm / 2.5 mm / 9.5 mm socket for plug-in power supply unit

-Interface:

RS232 (9600 baud, 8 data bits, 1 stop bit, no parity)

Plug: TRIAD01 (Tyco)

-Temperature range:

Operating: (5 to 40)°C

Storage: (-10 to 50)°C

-Humidity: <80%, non-condensing

-Dimensions: 195 mm x 100 mm x 40 mm / 500 g

-Accessories:

Power Supply: D, USA or GB

Datasheet
