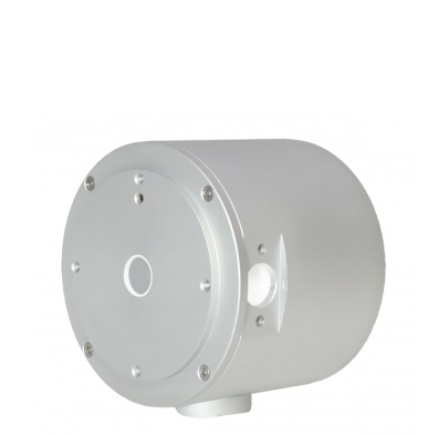

Gigahertz-Optik UPK-50-L Integrating sphere (50 mm)

-Measurement range:

Sphere Diameter: 50 mm

Measurement port: One. 10 mm diameter

Baffle: Yes. Collar type

Application ports: Two in +/- 8° orientation to the measurement port. With port plugs.

Detector port: One. 11 mm Diameter. Optional two more

Coating: ODM98

-Typical applications: Integrating sphere for the configuration for reflection measurements.

-Calibration: Optional calibration of the spectral radiant responsivity from 250 nm to 1800 nm.

-Coating: ODM98

-Sphere diameter: 50 mm

-Measurement Port Diameter: 10 mm

-Detector port: 3x UP-DP-11 (e.g. PD-11, TD-11, VL-11, UFC-11)

-Mounting: M6 and 1/4” threaded holes
