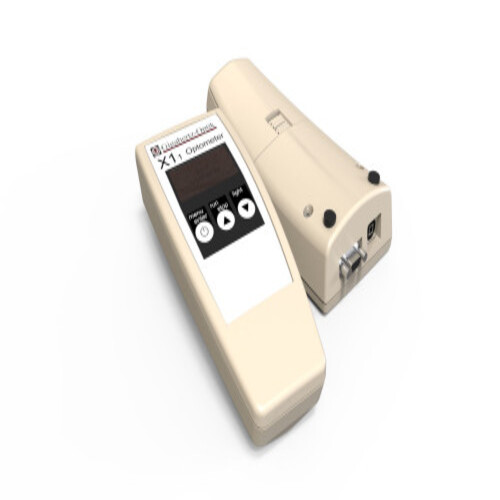

Gigahertz-Optik X1 Hand-Held Light Measurement Instruments (200 μA - 200.0 pA)

Detector interface: 9pin MDSM9 socket, 4 inputs

Measurement range: Seven (200 μA to 0.1 pA) manual or auto range which can be set by the user. The default setting depends on the customer specific configuration.

CW integration time: 1 ms – 1 s

Sampling rate: internal sampling rate ADC 250 µs

Offset correction: Correction range transcending

Parameter adjustment: Remote control or front panel buttons (menu), set values permanently stored (EEPROM)

Calibration:

X1-1: max. 256 data sets (one data set can include up to 4 channel entries) total stored in device EEPROM

X1-5: max. 64 entries for one channel stored in detector EEPROM

Power Supply: Two AA batteries ~ 250 hrs. operation time - backlit display off

Powered by :USB-Interface

Interface: USB V1.1 (HID Device)

Dimensions: 145 mm x 63 mm x 30 mm compatibel

Weight: 150 g

Datasheet
