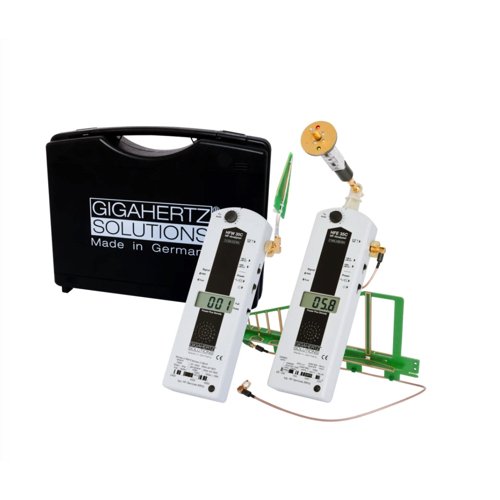

GIGAHERTZ SOLUTIONS HFEW35C Ultrabroadband RF Analyser Kit (27 MHz - 6 GHz)

Item weight: 1.47 kg

Frequency range: 27 MHz - 6 GHz

Measurement range: Power flux density: 0.1 - 1999 µW/m²

Precision:

Basic accuracy (CW) including linearity error: +/- 6 dB

Zero point deviation and special digitizing error ("rollover"): +/- 9 digits

Sensor:

Optimized logarithmic-periodic measuring antenna with frequency response compensated directly on the antenna and very good directionality (patent in examination AZ 10 2006 051 180.8).

Audio analysis:

Modulation frequency and field strength proportional audio signal supports identification of pulsed radiation sources (WLAN, WiFi, etc.) and detection of elevated exposures.

Signal rating:

Peak and average Display

Quantitative differentiation of pulsed and non-pulsed radiation (patented circuit)

Power supply:

9-volt E-block alkaline manganese battery (included), average operating time: 6 - 7 hours (depending on operating mode)

Low-batt. indicator

Auto power-off function

Manual HFE35C

Manual HFW35C
