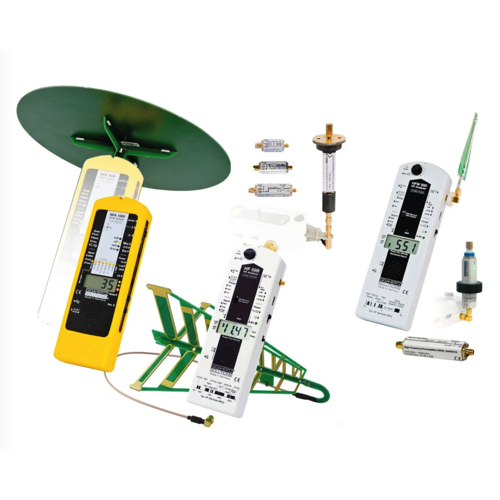

GIGAHERTZ SOLUTIONS MK70-3D plus 2.2 3D Electrosmog Measuring Kit (700 MHz - 2.7 GHz; 5 Hz - 1000 KHz)

Item weight: 5.10 kg

Frequency range:

HF59B: 700 MHz - 2.7 GHz (3.3 GHz with increased tolerance). Supplied with LogPer antenna from 700 MHz. Internally "open" - down to 27 MHz, prepared for connection of UBB27).

NFA1000:

5 Hz - 1000 KHz (compensated). Also includes modern switching power supplies

Better than required by the technical annex of the TCO directive for VDU workstations

Measurement range:

HF59B: Power flux density: 0.01 - 19,990 µW/m²

HFW59D: Power flux density: 1 - 19,990 µW/m²

NFA1000:

Magnetic flux density: 1 - 19,990 nT

Electric field strength: 0.1 - 1999 V/m

Precision:

HF59B:

Basic accuracy (CW) including linearity error: +/- 3 dB

Zero point deviation and special digitizing error ("rollover"): +/- 5 digits

HFW59D:

Basic accuracy including linearity error: +/- 3 dB

Zero point deviation and special digitizing error ("rollover"): +/- 5 digits

NFA1000:

50 / 60 Hz: +/- 5 %

16 Hz - 30 kHz: +/- 1 dB

5Hz - 1000 kHz: +/- 2 dB

Isotropic reduction: +/- 1.5 dB

Offset +/- 5 Digits

Included Components

NFA1000

HF59B

HFW59D

1 X HV10_27G3

1 X PM5s

1 X PM1

1 X UBB2410

1 X HV20_2400G10

1 X UBB27_G3

1 X DG20_G10

1 X HOL1

1 X TCO3

1 X K7

1 X HP33_G10

1 X HP700

1 X ADA-Y

Manual HF59B

Manual HFW59D

Manual NFA1000
