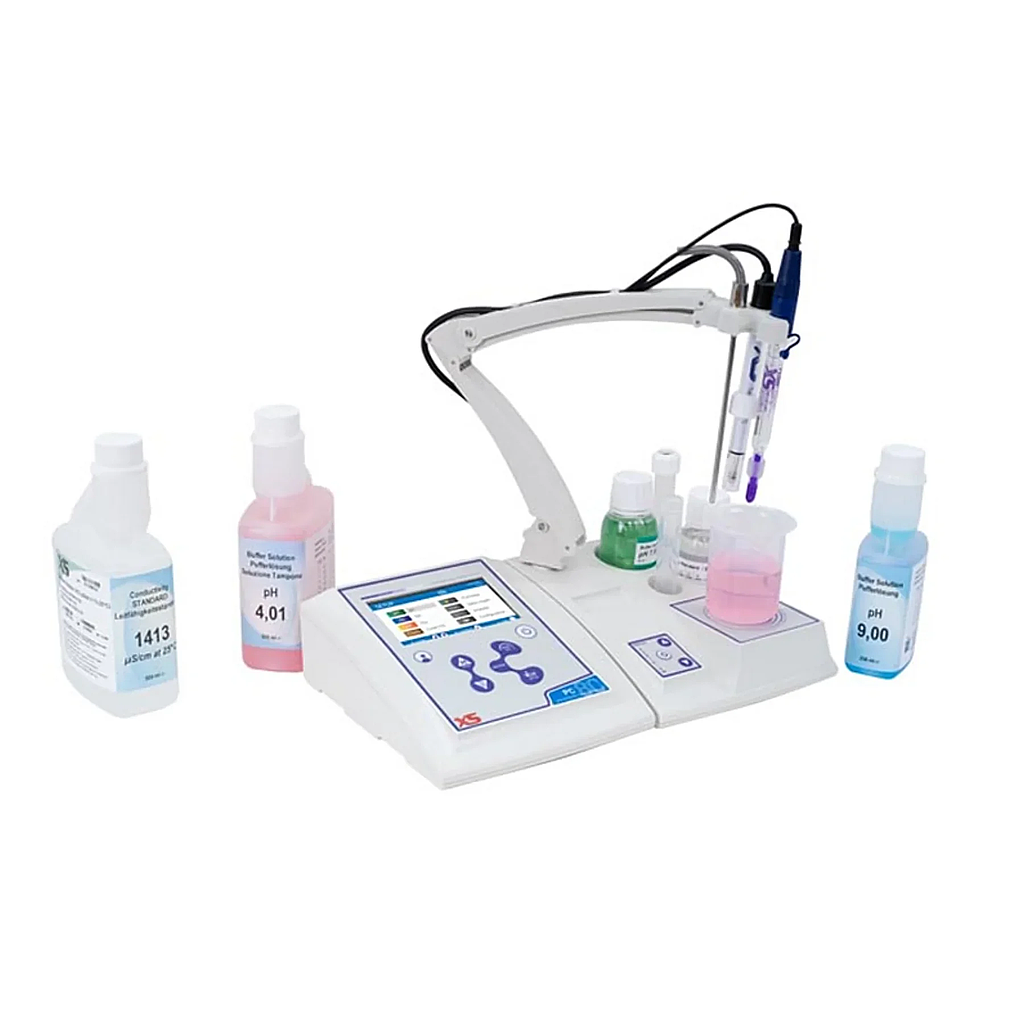

Giorgio Bormac PC 80 PRO Bench multiparameter - Cell EPT4 - Without electrode

Supplied as standard: S7/BNC cable, NT 55 temperature probe, stand electrode holder, coloured buffer solutions, external keyboard, USB cable and multi-socket power supply unit.

Standards applied: Regulations

Performance:

Accuracy (COND): ±0.5 % f.s.

Accuracy (pH): ±0.002

Temperature accuracy: ±0.2 °C

Temperature coefficient: 0.00 ... 10.00 % / °C

Temperature compensation: 0.0 ... +100.0 % / °C

TDS factor: 0.40 ... 1.00

Measuring range (COND): 0.00 μS ... 1000 mS

mV ORP measuring range: -2000 ... +2000

pH measuring range: -2.000 ... +20.000

Salinity measuring range: 0.01 ppm ... 100 ppt

TDS measuring range: 0.1 mg/l ... 500 g/l

Temperature measurement range: -30.0 ... +130.0 °C

COND resolution: 0.01 / 0.1 / 1 (automatic scale) μS/cm

ORP resolution: 0.1 / 1 (automatic)

pH resolution: 0.1 / 0.01 / 0.001

Temperature resolution: 0.1 °C

Working temperature: 0 ... +45 °C

Reference temperature: +15 ... +30 °C

Features:

AQA calibration: Yes

DHS compatibility: Yes

Printer connection: RS 232

Display: 2 rings: 0.1 / 1 / 10 | 4 rings: 0.55

Criteria for stability of the measure: Med - High - Tit | Secondi (ISE)

Display: 4.3" high-definition, backlit colour TFT

AQA: Yes

Inputs: 2 × BNC - 2 × RCA - Multipin - 4 mm banana

Memory: 8000

Calibration points (COND): 1 ... 4 automatic values - 1 user value

ORP calibration points: 1 automatic value - 1 user value

pH calibration points: 1 ... 5 automatic values - 1 ... 5 user values

Calibration report: Yes, printable

Swabs recognised (COND): 84 μS - 147 μS - 1413 μS - 12.88 mS - 111.8 mS

Recognised pH buffers: USA - NIST - DIN19266 - Mettler Toledo Eu - Merck

Display: Si

Feeds:

Power supply: 100 - 240 V

Dimensions and weight:

Dimensions (W×D×H): 324 × 185 × 56 mm

Weight: 1.255 kg
