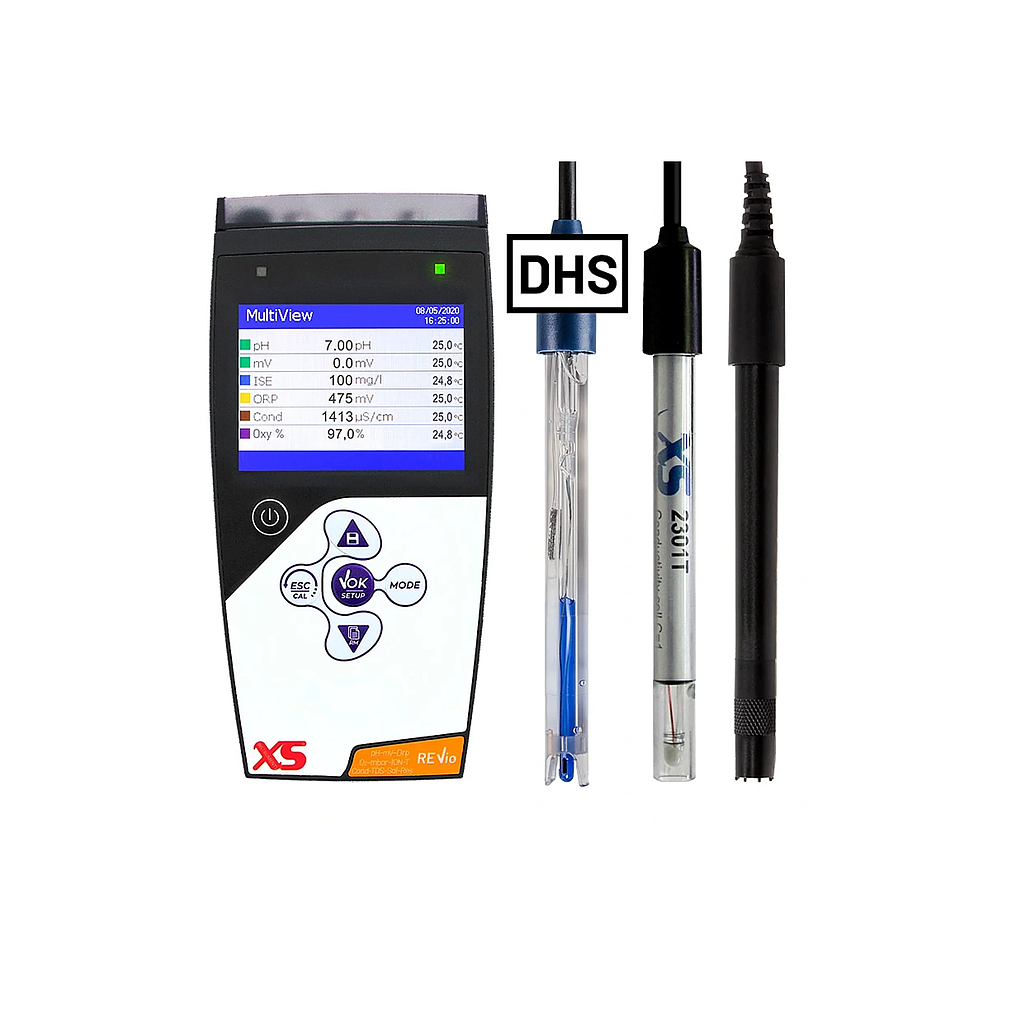

Giorgio Bormac REVIO Multiparameter - Electrode 201 T - Cell 2301 T - Polar ographic sensor

Supplied as standard:

3-hole field stand for electrodes

Coloured buffer solutions

USB cable

Power supply

User manual

IP67 carrying case

Standards applied:

Regulations: CE

Performance:

Accuracy COND: ±1 % f.s.

Accuracy pH: ±0.002

Temperature accuracy: ±0.2 °C

Temperature coefficient: 0.00 ... 10.00 %/°C

Temperature compensation: 0.0 ... 100.0 %/°C

TDS factor: 0.40 ... 1.00

Measuring range COND: 0.01 µS ... 1000 mS

ORP measuring range: -2000 ... +2000

pH measuring range: -2.00 ... +20.00

Salinity measuring range: 0.01 ppt ... 100 ppt

TDS measuring range: 0.1 mg/l ... 500 g/l

Temperature measurement range: -30 ... +130.0 °C

COND resolution: 0.01 / 0.1 / 1 µS/cm

ORP resolution: 0.1 / 1

pH resolution: 0.1 / 0.01 / 0.001

Temperature resolution: 0.1 °C

Reference temperature: +15 ... +30 °C

Features:

AQA calibration: Yes

DHS compatibility: Yes

Automatic brightness control: Yes

Display: 0.1 / 1 / 10

Criteria for stability of the measure (pH): Low - Med - High

Display type: High-definition backlit colour TFT

AQA: Yes

Inputs: 3 pairs BNC - RCA - Banana 4 mm Ref

Memory: 10,000 data

Calibration points COND: 1 ... 4 automatic values / 1 custom value

Calibration points ORP: 1

Calibration points pH: 1 ... 5 automatic values, 5 custom values

Calibration report: Yes

Recognised COND standards: 84 µS - 147 µS - 1413 µS - 12.88 mS - 111.8 mS

Recognised pH buffers: USA - NIST - DIN 19266

Display: Yes

Feeds:

Power supply: 4 x AA 1.5 V alkaline batteries

Dimensions and weight:

Dimensions (W x D x H): 185 x 85 x 45 mm

Weight: 0.45 kg

Datasheet
