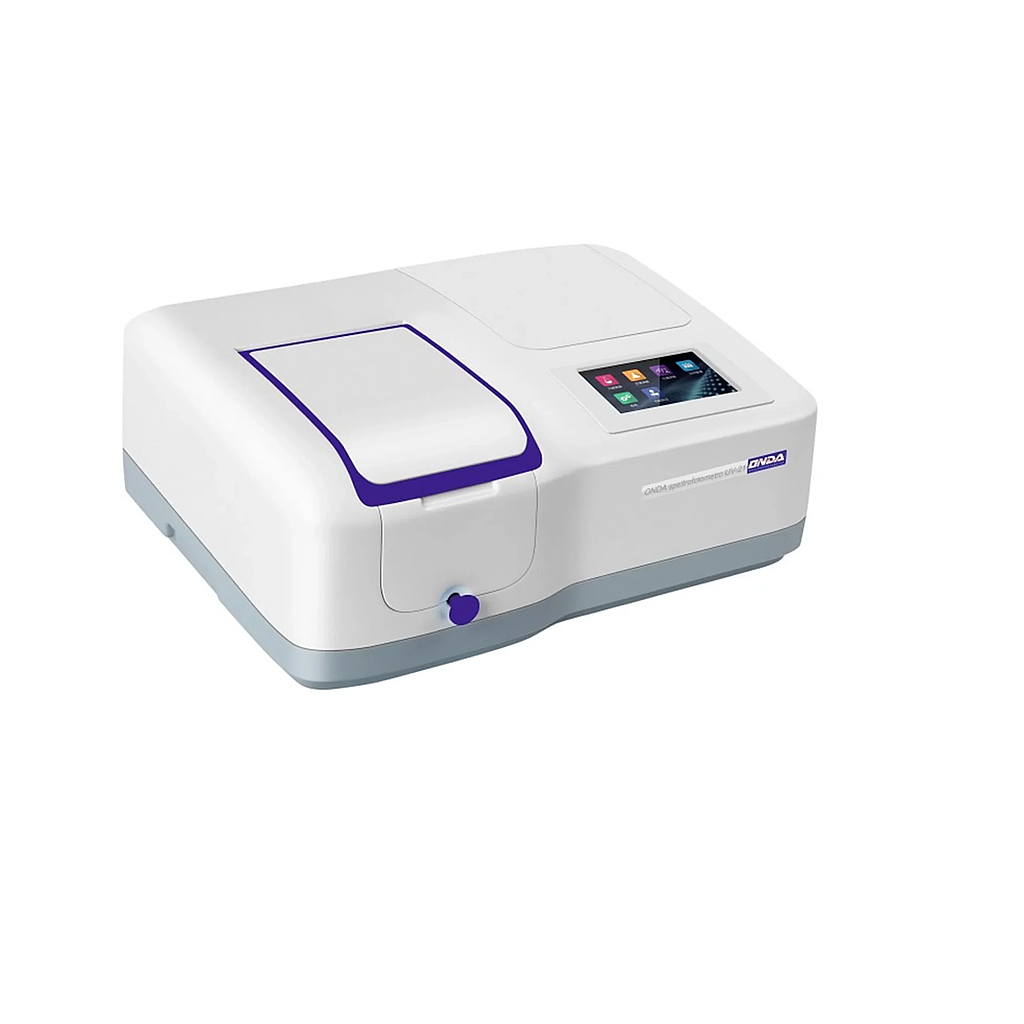

Giorgio Bormac UV-31 UV-VISIBLE spectrophotometer

Performance

Accuracy (photometric): ±0.2 (0-100) %T

Accuracy (wavelength): 0.8 nm

Bandwidth: 2 nm

Difused light: <0.1 %T

Photometric range: 0 - 200 %T

Abs photometric range: -0.3 - 3 Abs

Photometric range conc: 0 - 9999.9 Conc

Wavelength range: 190 - 1100 nm

Measuring range (UV/Visible): UV / Visible

Photometric resolution: 0.001

Wavelength resolution: 0.1 nm

Stability: ±0.002 Abs/hr (500 nm after 2 hours warm-up)

Features

Connection: USB-A / USB-B / RS-232

Display: Colour màn hình 5'' touch, fixed, 480 x 272 px

Basic photometry: Yes

File Management: Yes

Communication interfaces: Touch screen

Language: IT - EN - ES - DE - FR - PT

Memory: 236 kB (internal) expandable with USB stick

Quantitative: Yes

Detector: Silicon photodiodes

Spectral scanning: Yes

Optical system: Single beam

Sources: Tungsten-halogen / deuterium

Standard cell support: Manual 4 positions, cuvette optical path 10 mm

System Utilities: Yes

Sample compartment: Accessible from above and the front

Performance verification: Yes

Feeds

Power supply: 100 - 240 V

Power: 120 W

Dimensions and weight

Dimensions (W x D x H): 456 x 360 x 185 mm

Weight: 10.7 kg

Datasheet
