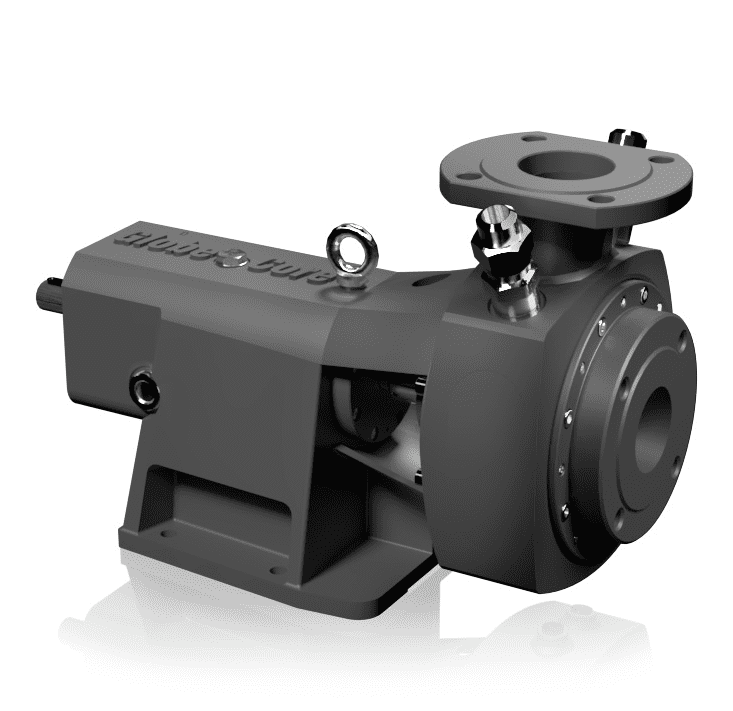

GlobeCore CLM-16/25 Colloid mill (25 m3/h; 37 kW)

Unit capacity, m3/h (gpm): 16…25 (70… 110)

Kinematic viscosity of product, mm 2/s (St), not more than: 150 (1.5)

Operating temperature, °С (°F), not more than: 150 (302)

Operating pressure, bar (psi), not more than: 10 (145)

Preliminary pressure head on the product supply side, bar (psi), not more than: 0.1 (1.45)

Shaft seal type: packing

Rotor/stator tooling type: nozzle

Replaceable knife kit: optional

Knife axial gap: preset

Minimum knife axial gap, mm (in): 0.5 (2·10-2)

Minimum knife radial gap, mm (in): 0.25 (10-3)

Knife tip speed, m/s (mph), not less than: 45 (100)

Mill shaft and bearing rotation speed, rpm: 7,425

Electric motor shaft rotation speed, rpm: 2,970

Lubrication and cooling of mill shaft bearings: oil bath

Oil volume in bearing assembly, dm3 (gal): 0.2 (0.05)

Mill heating: thermal oil

Required power, kW: 37

Power voltage, V: custom

Dimensions, mm (in), not more than:

·      length: 1,060 (42)

·      width: 860 (34)

·      height: 680 (27)

Weight, not more than, kg (lb): 470 (1036)
