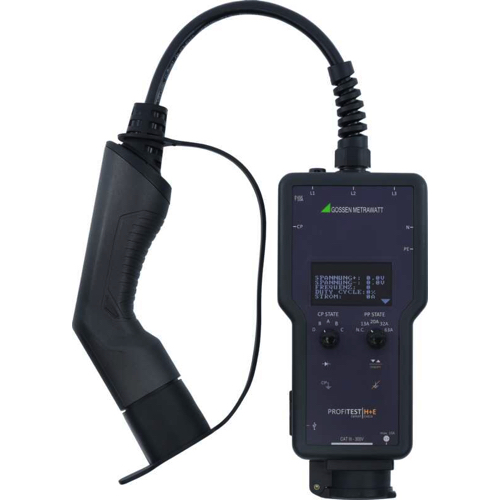

Gossen Metrawatt PROFiTEST H+E EXPERT CHECK Diagnostic Tester And Test Adapter For AC Charging Points (3 A; 20 A; 32 A; 63 A)

Test Analysis Standard

AC:

DIN EN IEC 61851-1; VDE 0122-1

Electric vehicle conductive charging system – Part 1: General requirements

Measurement of voltage values in all three phases and N

Test Parameters

Cables: 13 A; 20 A; 32 A; 63 A; No cable connected (N.C.)

Vehicle states: State A, state B, state C

Phases; tOFF (state E); Rotary field; Duty cycle; Frequency

Fault simulation: Diode test; CP-PE short-circuit (state E); PE fault (ground fault) with display of tripping time

Housing: 240 × 115 × 60 mm

Weight: 1180 g

Protection: IP 21

Display: Monochrome

Earthing contact socket:

Max. 10 A, 230 VAC

Fuse: T 10 A, 250 V, 20 × 5 mm

Measuring inputs: 4 mm; L1, L2, L3, N, PE, CP

CP signal output: ± 12 V, PWM signal

Interface: Micro USB port (for charging the

battery)
