Gossen Metrawatt PV SUN PACKAGE Testing Of Photovoltaic Systems (1000 V DC; 20 A DC)

Voltage measurement: 0 to 1000 V DC

Current measurement (direct): 0 to 20 A DC

Insulation resistance measurement

Measuring range: 0 to 20 MΩ

Test voltages: 250, 500 and 1000 V DC

Ground fault measurement: 0 to 1000 V DC

Testing for protective conductor continuity: 0 to 10 Ω

Display: LCD Multiple display with background illumination; Dot matrix: 128 x 64 pixels

Data Interface: USB 2.0 (USB 2.0 full speed (12 Mbps) compatible)

Protection: Housing: IP 42 per DIN VDE 0470 part 1/EN 60529

Dimensions: 209 x 98 x 35 mm

Weight: approx. 500 g with batteries

Description

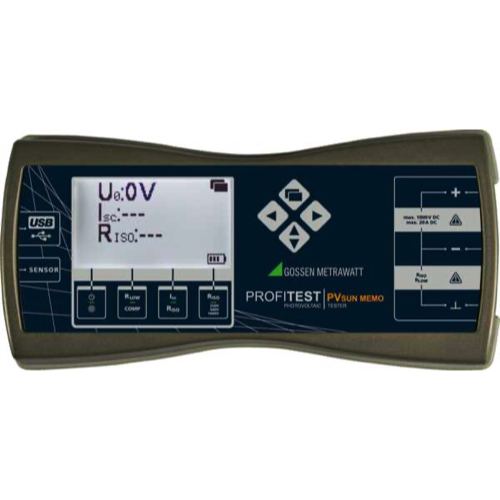

Test equipment consisting of PROFITEST PVSUN MEMO, PROFITEST PVSUN-SOR,

Set 2 – Magnetic Measuring Tips and test case
