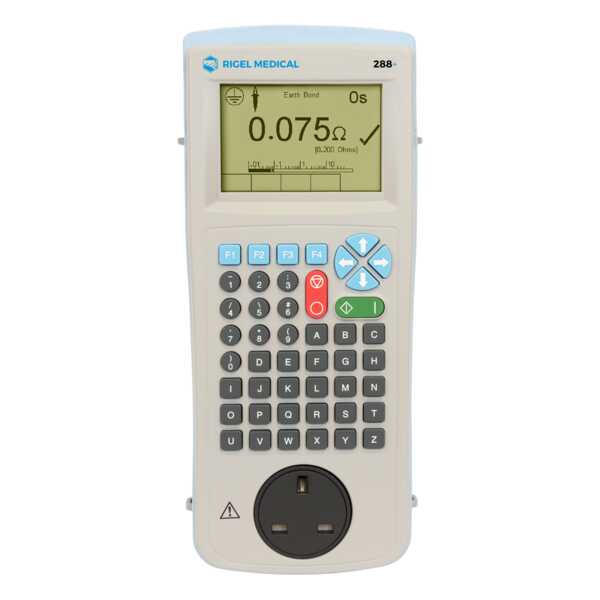

Gossen Metrawatt Rigel 288 Plus Hand-Held Electrical Safety Analyzer (DC >200 mA; 50...500 V DC; 4 µA – 9999 µA)

Application: Routine testing, service, and asset management of medical electrical equipment

Design: Portable, battery-powered

Battery: 6 x 1.5V AA

Dimensions (L x W x D): 270 x 110 x 75 mm

Weight: approx. 1.6 kg

Protection Class: IP40

Standards: IEC/EN 62353, IEC/EN 60601-1, IEC 61010, NFPA-99, AS/NZS 3551

Measurement Functions:

Earth/Ground Bond Resistance: >200 mA DC test current

Insulation Resistance: 50 / 100 / 250 / 500 V DC

Leakage Current: 4 µA – 9999 µA

Leakage Methods: Direct, differential, alternative

Patient Leakage Tests: AP-GND, AP-CASE, AP-AP, AP-ALL

Touch Leakage: Yes

Power Measurement: 0.1 – 4 kVA

Mains Measurement: 0 – 300 VAC

IEC Lead Test: Continuity, insulation, polarity

Features:

Test Modes: Automatic & manual sequences

Test Routines: User-definable

Data Storage: up to 5,000 test results

Data Transfer: Wireless via mobile app (Rigel 288+ Downloader)

Connectivity: Bluetooth (printer support)

Printing: Direct Bluetooth printing

Verification: Automatic secondary check for measurement validity

Operation: Battery-powered → full portability for field service

Special Features:

Low-energy high-current bond test: Accurate and safe measurement

24V / 48V equipment testing: Supported via 50V & 100V insulation tests

All-in-one analyzer: Combines leakage, insulation, and bond testing in one unit
