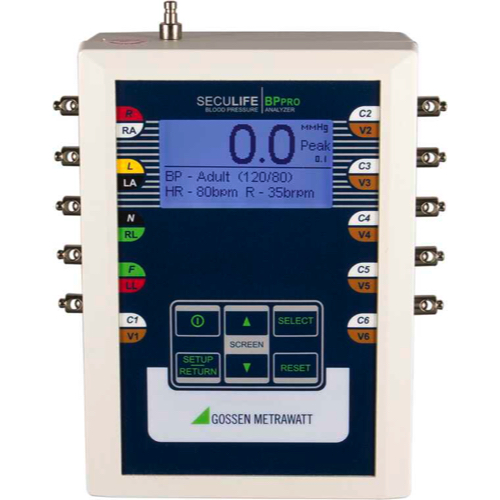

Gossen Metrawatt SECULIFE BP PRO Multi-Patient Simulator (30, 60, 120, 240 BPM)

Device:

Construction: 17.8 x 12.7 x 10.2 cm / ABS Plastik

Weight: < 3 Lbs (< 1.36 kg)

Face Plate: Lexan / Back printed

Operating Range: 15 to 40 °C

Storage Range: -20 to 65 °C

General:

Display: LCD Graphical 128 x 64 pixel

Backlight: Yes

Lead Test Terminals: No

RS232: Yes

Power: 6 x 1.5 V AA

Battery Eliminator: Yes

ECG-NSR:

Leads: 10

Rates: 30, 60, 120, 240 BPM

Amplitudes: 2.75 mV

QRS Interval: Adult, Neonatal, Hypertensive, Hypotensive

ST Segment Elevation: No

ECG-Performance: Yes

Sine Waves: 10,60,100 Hz

Square Waves: 0.125, 2000 Hz

Triangle Waves: 2000 Hz

Pulse Waves: -

Respiration: Yes

Rate: 4

Baseline: 1

Delta Impedance: 1

NIPB: Yes

Rates: 80, 94 BPM

Pressure Output: ±500 mm Hg

Special Modes: Yes

SpO2 Simulation: With Seculife OX

Lead Test: Yes

Manometer: Yes

Pacemaker: Yes

Arrhythmias: 6

Blood Pressure: 1

Temperature: YSI 400 / 700; 0, 24, 30, 37, 40 °C (± 0.1 °C Accuracy)
