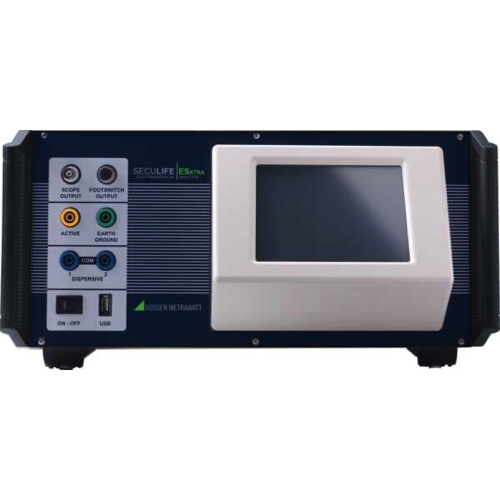

Gossen Metrawatt SECULIFE ES XTRA Electrosurgical Analyzer (0 ~ 6400 ohms; 10 kV, 5 A)

Device:

Display: 14.5 cm QVGA 18-bit color touch screen

Construction: 19.8 × 31.8 × 57.2 cm (Aluminum)

Weight: 14 kg

Face plate: Lexan/back printed

Operating range: 15 – 40°C

Storage range: -20 – 65°C

Connections:

Input: I/O 4 mm safety jacks

3 × USB, 1 × Serial, 1 × Ethernet, 1 × PS/2 (keyboard/mouse)

Output: 1 × BNC scope, Hypertronics 25-pin footswitch connector

Measurements:

A/D resolution: 14 bits

A/D speed: 64 MSPS

Bandwidth: 50 kHz – 10 MHz

Measurement accuracy: 1% of reading

Current Range: 2 – 700 mA RMS (low); 20 – 7000 mA RMS (high)

Current Resolution: 0.1 mA (low); 1 mA (high)

Power Range: up to 500 W

Power Resolution: 0.1 W

Crest factor Range: 1.4 – 500

Crest factor Resolution: 0.1

Voltage input:

Range: 0.20 – 70.0 mV RMS (low); 20 – 700.0 mV RMS (high)

Peak-to-peak: 0.0 – 1.0

Load Bank:

Relay: 10 kV, 5 A rated reed relays

Internal load: 0 – 6400 Ω; 1% non-inductive

Power rating:

1 Ω: 25 W

2 Ω: 50 W

4 Ω: 100 W

Remaining loads: 225 W

Load Bank Duty Cycle: 10 Seconds on, 30 Seconds off

Load Cooling: Dual 120 mm variable speed DC Fans
