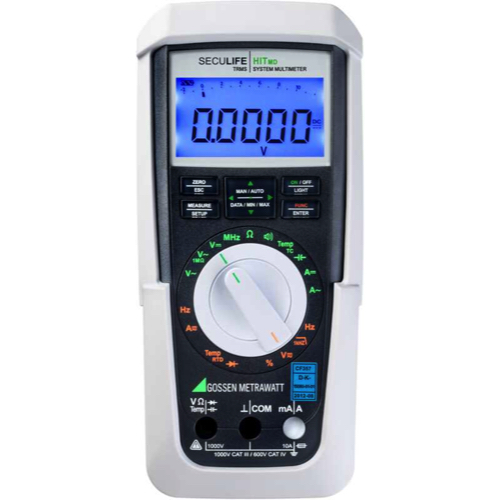

Gossen Metrawatt SECULIFE HIT MD System Multimeter For The Field of Medical Technology (True RMS 20 kHz; 31,000 counts)

Display: 4¾-digit LCD, 31,000 counts, backlight, analog bargraph

Measurement Functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, continuity, diode, temperature (Type K, Pt100, Pt1000)

True RMS: AC & AC+DC, bandwidth up to 20 kHz

Voltage Range: 100 mV … 1000 V AC / DC

Current Range: 100 µA … 10 A (16 A max), autoranging

Resistance Range: up to 30 MΩ

Capacitance Range: up to 300 µF

Frequency Range: up to 1 MHz

Basic Accuracy: ±0.05 % (VDC)

Data Logger: Internal memory >15,000 readings

Interfaces: Bidirectional infrared (IR), optional IR-USB adapter

Hygiene Features: Resistant to disinfectants, hygiene certificate (University of Marburg), suitable for medical & pharma areas

Safety Rating: CAT III 600 V / CAT IV 300 V (EN 61010)

Protection Class: IP65 (dust & water protected)

Power Supply: 2 × AA 1.5 V batteries or external wide-range power pack (95–250 V AC, optional)

Dimensions (W × H × D): 200 × 87 × 45 mm

Weight (incl. battery): approx. 350 g
