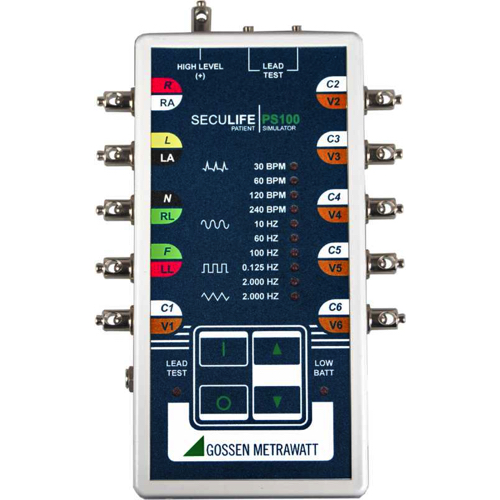

Gossen Metrawatt SECULIFE PS100 Patient Simulator for ECG (30, 60, 120, 240 BPM)

• 3 sine, 2 square and 2 triangle selectable curves

• Indicator for residual voltage of the battery (in %)

• Patient simulation with 4 waveforms

• ECG with 30, 60, 120 and 240 BPM

• With constant QRS duration

• Leak test realisable

Device:

Construction: 184.4 × 113.3 × 38.4 mm (ABS plastic)

Weight: ≤ 0.45 kg

Faceplate: Lexan, back printed

Operating range: 15 – 40°C

Storage range: -20 – 65°C

General:

Display: 11 LED

Backlight: No

Lead test terminals: Yes

RS232: No

Power: 1 × 9 V battery

Battery eliminator: Optional

ECG-NSR: Yes

ECG Performance: Yes

Respiration: No

NIBP: No

Special Modes: No

Pacemaker: No

Arrhythmias: No

Blood pressure: No

Temperature: No
