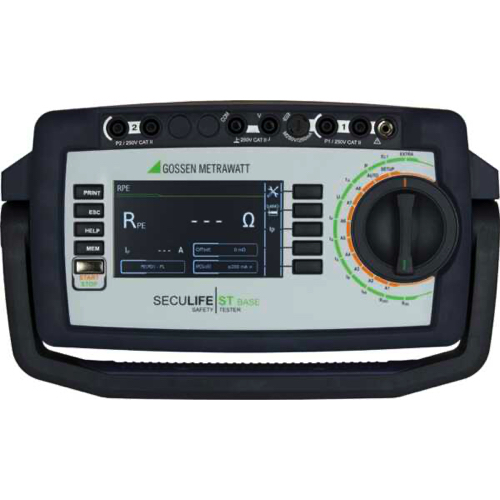

Gossen Metrawatt SECULIFE ST BASE Electrical Safety Tester for Medical Devices (10 A AC; 1 mΩ ~27.0 Ω; 300 MΩ)

Application: Precision safety tester for medical electrical devices per IEC 62353 / EN 62353.

Special Housing: Features antimicrobial properties to inhibit the growth of germs and microorganisms.

Display: High-resolution, brilliant 4.3" TFT color display with LED backlighting.

User Interface: Dual operation via touchscreen and a softkey-driven keyboard.

Test Current (RPE): Supports a high-current 10 A AC protective conductor test.

RPE Range: Measurement from 1 mΩ to 27.0 Ω with automatic range selection.

Insulation Resistance (RINS): Test voltages from 50 V to 500 V DC; range up to 300 MΩ

Medical Leakage Tests: Includes Patient Leakage current (IP) and Applied Part leakage (IA).

Measurement Methods: Supports Direct, Differential, and Alternative leakage measurement methods.

Database: Extensive internal memory for up to 50,000 data records.

Integrated Test Sequences: Preconfigured, standards-compliant sequences for medical and standard equipment.

Automatic Detection: Automatically detects the DUT protection category and connection status.

PRCD Testing: Integrated sequences for testing PRCD-S and PRCD-K types.

Interfaces: Equipped with 2x USB Master ports (for scanners/printers) and 1x USB Slave.

Software Connectivity: Bidirectional data exchange with IZYTRONIQ professional software.

Report Generation: Adjustable report templates directly in the instrument; supports company logos.

Multiple Measurement Points: Permits convenient recording of several measuring points on one DUT.

Voltage Measurement: Integrated DVM function for measuring up to 300 V.

International Settings: Extensive options for language, keyboard layout, and date/time formats.

Power Supply: Universal input from 90 V to 264 V AC, 50 Hz to 400 Hz.

Safety Category: Designed for 300 V CAT II operation.

Housing Protection: Compact, impact-resistant design with an integrated rubber protector.

Portability: Lightweight unit weighing approximately 2.5 kg.
