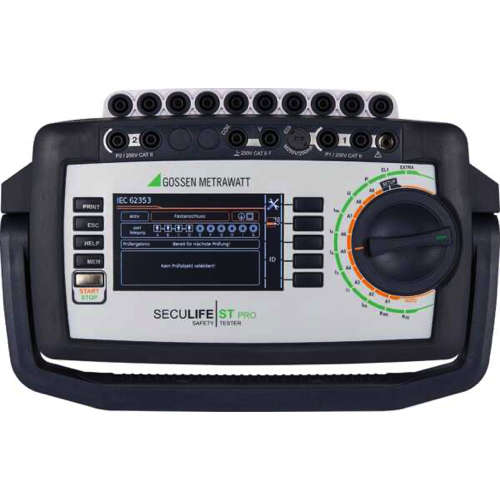

Gossen Metrawatt SECULIFE ST PRO Electrical Safety Tester for Medical Devices (0 – 300 MΩ)

Application: Testing of electrical safety for medical equipment and systems

Dimensions (L x W x H): 295 x 145 x 150 mm

Weight: approx. 4.0 kg

Interfaces: USB

Memory Capacity: approx. 50,000 records

Display: 4.3” TFT color display

Standards: IEC/EN 62353, IEC/EN 60601, DIN VDE 0701-0702

Measurement Functions:

Protective Conductor Resistance: Yes

Insulation Resistance: 0 – 300 MΩ

Leakage Current: PE, device, touch, patient, patient auxiliary

Voltage Measurement: Contact voltage, SELV, PELV

PRCD Test: Tripping time measurement

Functional Test: U, I, P, S, frequency

Line Test: Continuity, short circuit, polarity

Temperature Measurement: Pt100 / Pt1000

Features:

Test Sequences: Predefined & programmable

Data Management: Advanced database with structured fields (building, room, etc.)

Software: IZYTRONIQ Business Starter included

User Interface: Rotary switch + soft keys + direct keys

Multiple Measurement: Simultaneous acquisition of multiple points

RFID / Barcode: Supported via USB

Data Export: XML via USB

Special Feature: Antimicrobial housing (bacteria, viruses, fungi resistant)

Datasheet
