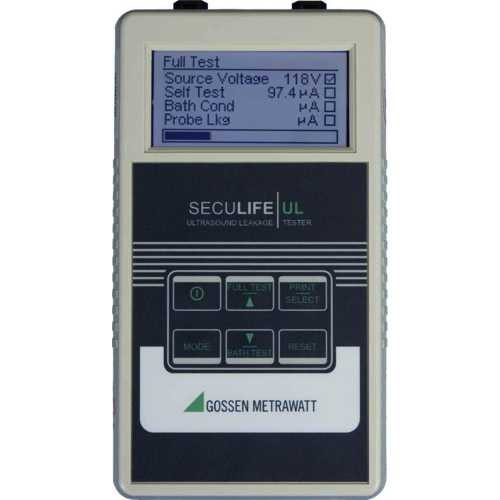

Gossen Metrawatt SECULIFE UL Leakage Current Tester For Ultrasound Transducers (0.5 ~ 500 μA)

Size: 18.5 x 10.08 x 4.57 cm

Enclosure: ABS Plastic

Weight: < 0.68 kg

Frontplate: Lexan / Black printed

Operating Range: 15 to 30 °C

Storage Range: -40 to 60 °C

Display: LCD-Graphic Screen 128 x 64 Pixel

Backlight:YES

RS232: YES

Battery: 9 V Lithium, 1200 mAh (ANSI/NEDA 1604LC or equilent)

Power consumption:

On < 300 mA

Off < 250 μA

Test procedures

Source Test: YES

Circuit Test: YES

Bath Conductivity Test: YES

Probe Leakage Test: YES

Specification

Source Voltage: 90 to 275 V AC, ±1% FS

Leakage Current:

0.50 to 10.00 μA, ± 0.5 μA

10 to 250 μA, ±1% FS

250 to 500 μA, ±1% FS

Conductivity current: 0.5 to 500 μA, ±1% FS

Memory

Setup Memory: EEPROM, All Parameters

Memory Retention: 10 years w/o power
