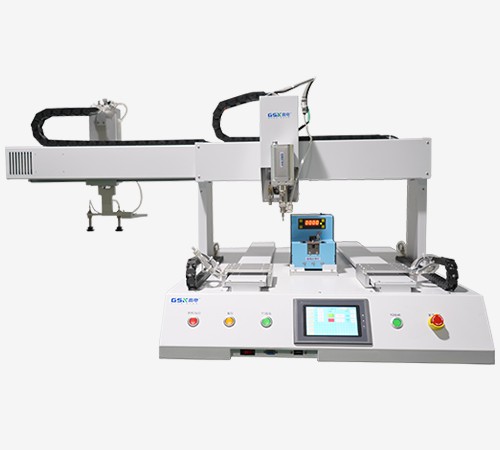

GSK AT-J104 Single Head Double Platform With Manipulator Locking Screw Machine (M1-M5)

* Size: 850x730x600mm (L*W*H)

* Lock range: 250x150x70mm (can be customized according to customer products)

* Transmission mode: precision stepping motor/synchronous belt

* Screw extraction method: vacuum suction type

* Manipulator fetching method: suction or clamping type

* Suitable screw: M1-M5

* Control system: PLC+ touch screen

* Positioning accuracy: soil 0.02mm

* Lock speed: 1-2 seconds /PCS (depending on screw length)

* Lock payment defective rate: ≤0.2%

* Function description: missing lock/floating lock/slip tooth judgment and automatic cutting, etc

* Lock torque: adjustable

* Hardware configuration: Electrical parts/screw/slide/module are all well-known brands

* Working air pressure: 0.5-0.7Mpa

* Power supply: AC220-240V, 10A

* Applicable products: mobile phone, calculator, navigator, audio, camera, learning machine, small household appliances, keyboard, etc
