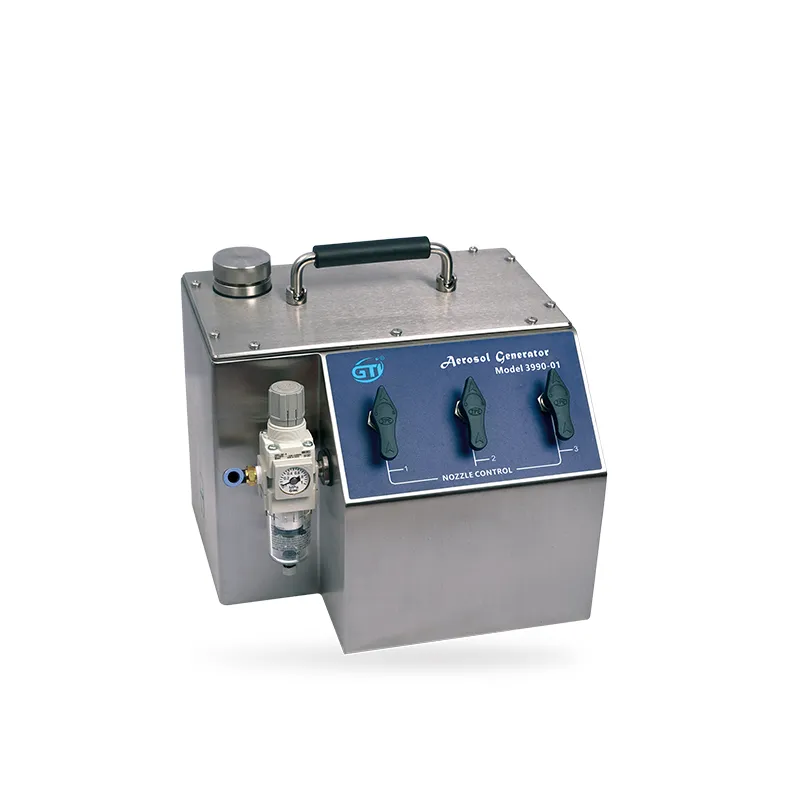

GTI 3990-01 Aerosol Generator (50 ~ 8100 cfm)

Aerosol Concentration

100µg/ L @ Flow 810 cfm;

10µg/ L @ Flow 8100 cfm

Aerosol Output Range:0 ~ 8100 cfm (85 ~ 13,700 m3/h)

Accuracy: 72 ~ 116psi (0.5 ~ 0.8MPa)

Repeatability: Min 2.65cfm (75L/min) /nozzle .20/23 psi (0.14/ 0.16MPa)

Aerosol Reagent: PAO-4/ DOP/ Ondina EL/ DOS/ White mineral oil/ Polyethylene glycol/ Corn oil

Generator Type: 1 ~ 6 Laskin-Nozzle

Dimension: 280 × 270 × 250 mm (L × W × H)

Weight: 8.4 kg
