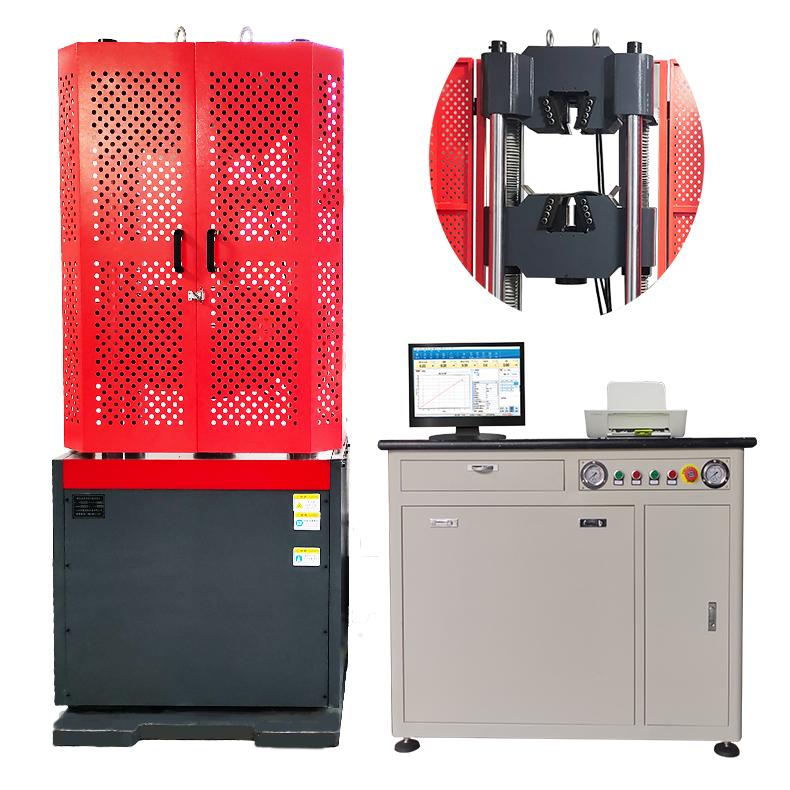

HAIDA HD-B616S-3 Electro Hydraulic Servo Universal Test Machine (1000KN)

Max. load: 1000KN

Column: 4 Columns and 2 Screws

Column spacing: 585mm

Measure range: 2%-100%F.S

Load accuracy: ±1%

Elongation accuracy: ±1%

Piston stroke: 200mm

Max. Tensile space: 600mm

Max. compression space: 550mm

Display mode: PC

Clamping mode: Hydraulic

Operation mode: PC

Flat specimen thickness: 0-30mm

Round specimen diameter: Φ6-φ40mm

Flat sample maximum clamping width: 75mm

Platen size: 204*204mm

Maximum distance between two points of bending fulcrum: 300mm

Bending roller width: 140mm

Power supply: Three phase, 380V, 50Hz

Machine dimension(L*W*H): 900*710*2300mm (Approx.)

Oil cabinet dimension(L*W*H): 1100*750*1000mm (Approx.)
