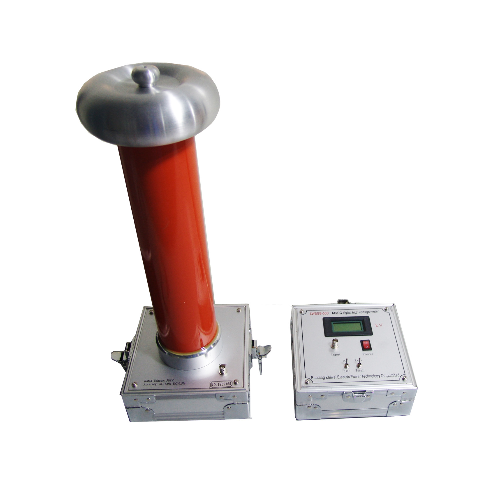

Zhiwei SGB-50C 고전압 분배기 (0-50kV)

Partial pressure ratio of voltage divider: 1000:1

Insulating medium: dupont dry dielectric

Ac measurement : true effective value measurement

Environmental conditions

Temperature: 0 ~ 40℃

Wet degree: 85% RH or less

Voltage level: AC：50kV, DC：50kV

Accuracy: AC：1.0%; DC：0.5%

Measurement range: Low：0-20kV, High：0-50kV

Resistance（MΩ）: 600

Signal Wire Length: 3m

Dimension（mm3）: 180*180*620

Weight（kg）: 6
