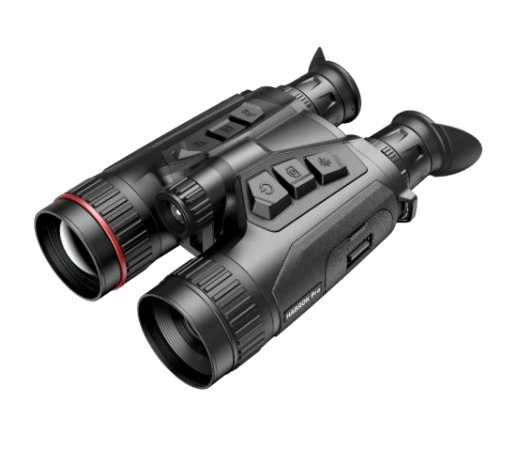

HIKMICRO HQ50LN Multi-Spectrum Binocular (640 × 512)

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 640 × 512

Frame Rate: 50 Hz

Pixel Interval: 12 μm

Response Waveband: 8 μm to 14 μm

NETD: Less than 15 mK (@25°C), F# = 1.0

Lens (Focal Length): 50 mm, F1.0

Focus Mode: Focus Ring

Detection Range: 2600 m

Min. Focusing Distance: 5 m

Magnification: 4.3× to 20.0× (4.6×)

Field of View (H × V), Degrees / m @100 m: 8.8° × 5.3° / 15.4 m × 9.3 m

Optical Module

Image Sensor: 1/1.8" Progressive Scan CMOS

Max. Resolution: 3840 × 2160

Focal Length: 60 mm, F2.2

Min. Working Distance: 3 m

Focus Mode: Focus Ring

Magnification: 5.5× to 22.0× (4×)

Field of View (H × V), Degrees / m @100 m: 7.3° × 4.1° / 12.6 m × 7.2 m

Smart IR: Yes

IR Illuminator Wavelength: 940 nm

Viewing Range at Night: 350 m

Replaceable IR Illuminator: Yes

Image Display

Display: 0.49 inch, OLED, 1920 × 1080

Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto

FFC (Flat Field Correction) Mode: Auto, Manual, External Correction

Exit Pupil: 8 mm

Eye Relief: 15 mm

Diopter (Range): -5 D to +3 D

Brightness Adjustment: Yes

Tone Adjustment: Cold, Warm

Contrast Adjustment: Yes

Zoom Pro: Yes

Image Pro 2.0: Yes

System

Record Video: Yes

Capture Snapshot: Yes

Audio Recording: Yes

Standby Mode: Yes

Storage: Built-in EMMC (64 GB)

PIP: Yes

Hotspot: Yes

Hot Track: Yes

Digital Magnetic Compass: Yes

GPS: Yes

Local Album: Yes

Power Supply

Battery Type: Replaceable and Rechargeable Li-ion Battery Pack

Battery Operating Time: 10.5 h (25°C, with hotspot off, LRF and Zoom Pro on)

Type-C Power Supply: 5 V / 9 V DC, 3 A

External Power Supply: Supports External Power Supply, Supports Direct Charging

General

Protection Level: IP67

Dimension: 142.9 mm × 79.7 mm × 230.5 mm (5.6" × 3.1" × 9.1")

Weight: 975 g with Battery Pack

Working Temperature: -30°C to +55°C

Interpupillary Adjustment Range: 60 mm to 74 mm

Mounting Adapter: 1/4"-20 UNC

Laser Rangefinder

Safety Class for Laser: Class 1

Wavelength: 905 nm

Max. Measuring Range: 1000 m

Measurement Accuracy: ±1 m

Min. Measuring Range: 10 m
