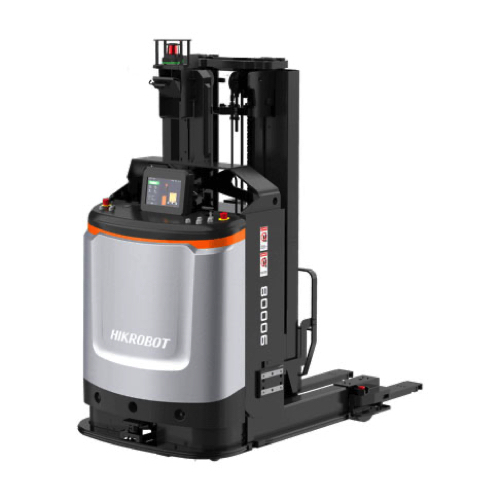

Hikrobot F3-1500-A 지게차 모바일 로봇 (1500kg ; 200mm)

Dimensions LWH (mm): 1632 x 870 x 1943

Weight (kg): 497

Rated Load Capacity (kg): 1500

Load Center (mm): 600

Lift Height (mm): 200

Mast Height, Extended (mm): N/A

Fork Dimensions s x e x l (mm): 60 x 170 x 1234

Width Over Forks (mm): 680 (optional)

Pallet Size (mm): 1200 x 1000

Lifting Speed (loaded / unloaded) (mm/s): 1200 / 1500

Navigation: Laser SLAM

Laser Obstacle Avoidance: Available

Automatic Data Logging: Available

Bumper Strip: N/A

Pallet Detection: Available

Fork Infrared Sensor: Available

Emergency Stop Button: Available

Warning Light: Available

Audible and Visual Alarm: Available

Rated Travel Speed (mm/s): 1600

Positioning Accuracy (mm): ±10

Angular Accuracy (°): ±1

Motion Modes: Steering wheel control, forward, backward, rotation, arc movement

Minimum Aisle Width (for 1200*1000 mm pallet) (mm): 2200

Operating Time (h): 6 - 8

Charging Time (h): ≤2 (after deep discharge)

Pallet Recognition: Optional

Code Reader: Optional

Adjustable Forks: N/A

RFID Reader: Optional

Custom Forks: Optional

Custom Mast: Optional
