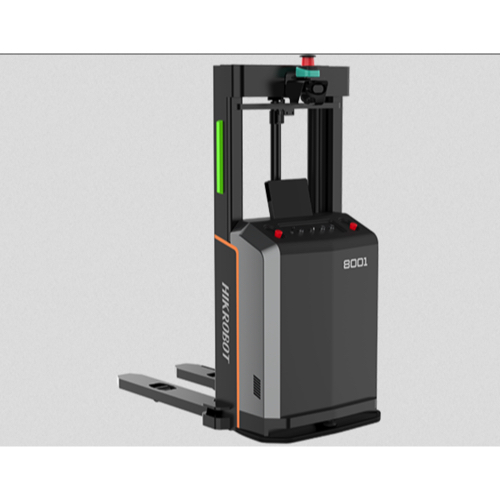

Hikrobot F4-1500-A 지게차 모바일 로봇 (1500kg; 3000mm)

Dimensions LWH (mm): 1892 x 940 x 2143

Weight (kg): 871

Rated Load Capacity (kg): 1500

Load Center (mm): 600

Lift Height (mm): 3000

Mast Height, Extended (mm): 3428

Fork Dimensions s x e x l (mm): 65 x 170 x 1244

Width Over Forks (mm): 600 (option)

Pallet Size (mm): 1200 x 1000

Lifting Speed (loaded / unloaded) (mm/s): 1000 / 1200

Navigation: Laser SLAM

Laser Obstacle Avoidance: Available

Automatic Data Logging: Available

Bumper Strip: Available

Pallet Detection: Available

Fork Infrared Sensor: Available

Emergency Stop Button: Available

Warning Light: Available

Audible and Visual Alarm: Available

Rated Travel Speed (mm/s): 1600

Positioning Accuracy (mm): ±10

Angular Accuracy (°): ±1

Motion Modes: Steering wheel control, forward, backward, rotation, arc movement

Minimum Aisle Width (for 1200*1000 mm pallet) (mm): 2200

Operating Time (h): 6 - 8

Charging Time (h): ≤2 (after deep discharge)

Pallet Recognition: Option

Code Reader: Option

Adjustable Forks: Option

RFID Reader: Option

Custom Forks: Option

Custom Mast: Option

Display Screen: 10.1 inch
